  11. Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

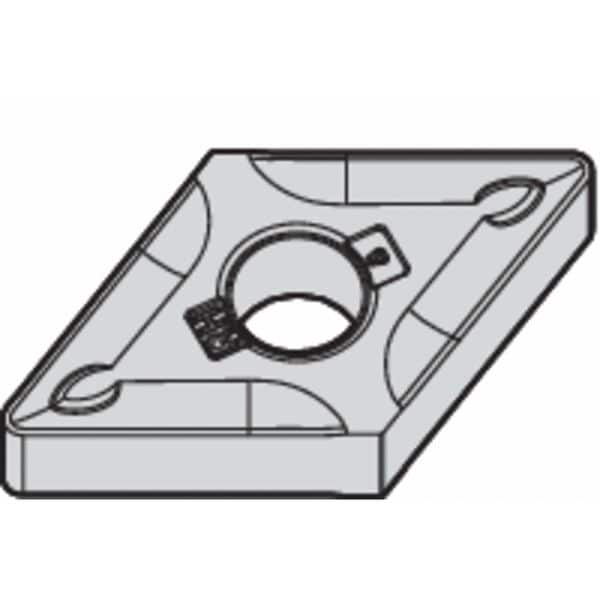

Widia Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide DNMG432RH - main

Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

  • Mfr # DNMG432RH

  • Zoro # G2813680

product price: $10.79
/ea
Sold in multiples of 10 for $107.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG432RH
Zoro #
G2813680
UPC #
-
Country of Origin
India

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.031"
Thickness
3
Cutting Edge Length
15.50mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WP25CT
Insert Material
Carbide
Insert Application
Roughing
Rake
Positive
ISO Number
DNMG150408RH
Non Ferrous (N) Compatibility
No
Mounting Style
Clamp
Coating
Tin
ANSI Number
DNMG432RH
For Use With
Toolholders, Boring Bars
Relief Angle
0 Degrees
Cast Iron (K) Compatibility
Yes
No. of Edges
4
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
Stainless (M) Compatibility
No
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Steel (P)
Steel (P) Compatibility
Yes
Measurement System
Fractional Inch
ANSI Code
DNMG432RH
Number of Cutting Edges
4
Shape
Rhombic
Finish - Machining
TiN
Manufacturer Grade
WP25CT
Clearance Angle
0 Degrees
Secondary Material Application
Cast Iron
Chip-Breaker Code
RH
Material - Machining
Carbide
Primary Material Application ISO Code
P
Chip-Breaker Style
On Two Sides
Secondary Material Application ISO Code
K
Cutting Application
Turning
Primary Material Application
Steel
Included Angle
55 Degrees
Insert Holding Type
Straight Hole
Material
Carbide
Style
DNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code RH, Inscribed Circle 1/2 in, TiN, ANSI Code DNMG432RH, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
