  11. Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

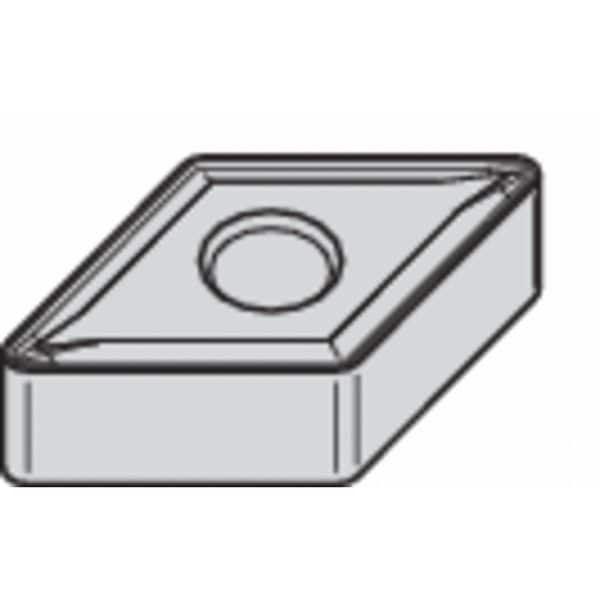

Widia Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide DNMG4422P - main

Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

  • Mfr # DNMG4422P

  • Zoro # G2912003

product price: $12.59
/ea
Sold in multiples of 5 for $62.95

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
442
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG4422P
Zoro #
G2912003
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
442
Corner Radius
2
Insert Thickness
0.2500"
Nose Radius
0.031"
Mounting Hole Dia.
0.203"
Thickness
4
Cutting Edge Length
15.50mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
TN10U
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
DNMG1506082P
For Use With
Toolholders, Boring Bars
No. of Edges
4
Stainless (M) Compatibility
Yes
ANSI Number
DNMG4422P
Coating
Tin
Cutting Direction
Neutral
Mounting Style
Clamp
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Relief Angle
0 Degrees
Super Alloy (S) Compatibility
Yes
Shape
Rhombic
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Primary Material Application ISO Code
M, S
Chip-Breaker Code
2P
ANSI Code
DNMG4422P
Primary Material Application
Nickel, Stainless Steel, Titanium
Material - Machining
Carbide
Secondary Material Application ISO Code
K, N, P
Chip-Breaker Style
On Two Sides
Cutting Application
Turning
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Finish - Machining
TiN
Included Angle
55 Degrees
Manufacturer Grade
TN10U
Number of Cutting Edges
4
Material
Carbide
Style
DNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code 2P, Inscribed Circle 1/2 in, TiN, ANSI Code DNMG4422P, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
