  11. Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

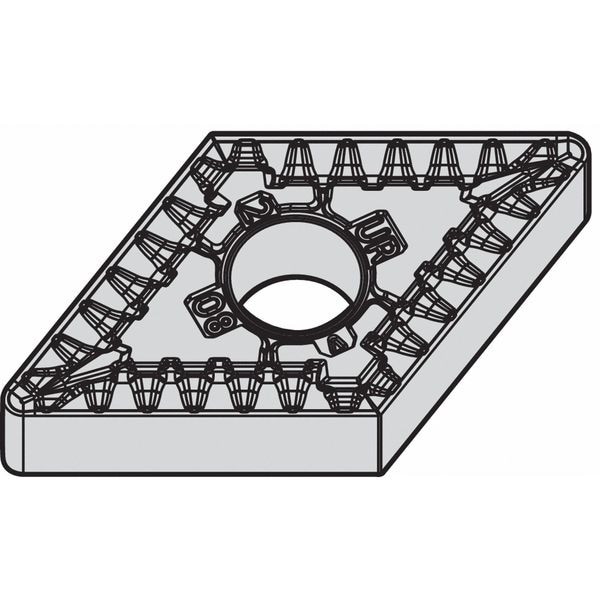

Widia Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide DNMG433UR - main

Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

  • Mfr # DNMG433UR

  • Zoro # G2810941

product price: $10.79
/ea
Sold in multiples of 10 for $107.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG433UR
Zoro #
G2810941
UPC #
-
Country of Origin
India

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.047"
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Cutting Edge Length
15.50mm
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WP25CT
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
DNMG150412UR
Mounting Style
Clamp
Cast Iron (K) Compatibility
Yes
ANSI Number
DNMG433UR
No. of Edges
4
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Coating
Tin
Workpiece Compatibility
Cast Iron (K), Steel (P)
Cutting Direction
Neutral
Stainless (M) Compatibility
No
Steel (P) Compatibility
Yes
Relief Angle
0 Degrees
For Use With
Toolholders, Boring Bars
Shape
Rhombic
Chip-Breaker Code
UR
Secondary Material Application
Cast Iron
Included Angle
55 Degrees
Primary Material Application
Steel
ANSI Code
DNMG433UR
Clearance Angle
0 Degrees
Manufacturer Grade
WP25CT
Finish - Machining
TiN
Chip-Breaker Style
On Two Sides
Number of Cutting Edges
4
Primary Material Application ISO Code
P
Measurement System
Fractional Inch
Insert Holding Type
Straight Hole
Secondary Material Application ISO Code
K
Cutting Application
Turning
Material - Machining
Carbide
Material
Carbide
Style
DNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code UR, Inscribed Circle 1/2 in, TiN, ANSI Code DNMG433UR, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
