  11. Diamond Turning Insert, Diamond, 4, DNMM, 2, Carbide

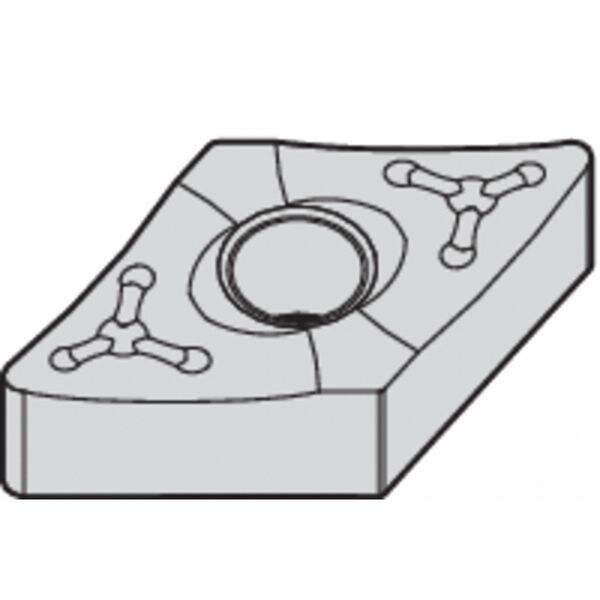

Widia Diamond Turning Insert, Diamond, 4, DNMM, 2, Carbide DNMM44265 - main

Diamond Turning Insert, Diamond, 4, DNMM, 2, Carbide

  • Mfr # DNMM44265

  • Zoro # G7681027

product price: $26.89
/ea
Sold in multiples of 5 for $134.45

Key Features

Insert Shape
Diamond
Insert Style
DNMM
Inscribed Circle
4
Insert Size
442
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMM44265
Zoro #
G7681027
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
442
Corner Radius
2
Nose Radius
0.031"
Insert Thickness
0.2500"
Mounting Hole Dia.
0.203"
Cutting Edge Length
15.50mm
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMM
Inscribed Circle
4
Chip-Breaker
Yes
Grade
WP15CT
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
DNMM15060865
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders, Boring Bars
ANSI Number
DNMM44265
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Coating
Tin
No. of Edges
2
Relief Angle
0 Degrees
Workpiece Compatibility
Cast Iron (K), Steel (P)
Mounting Style
Clamp
Stainless (M) Compatibility
No
Number of Cutting Edges
2
Chip-Breaker Code
65
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Included Angle
55 Degrees
Primary Material Application
Steel
Primary Material Application ISO Code
P
Manufacturer Grade
WP15CT
Cutting Application
Turning
Insert Holding Type
Straight Hole
Material - Machining
Carbide
Secondary Material Application ISO Code
K
Shape
Rhombic
Finish - Machining
TiN
Chip-Breaker Style
On One Side
ANSI Code
DNMM44265
Secondary Material Application
Cast Iron
Material
Carbide
Style
DNMM
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code 65, Inscribed Circle 1/2 in, TiN, ANSI Code DNMM44265, Chip-Breaker Style On One Side, Clearance Angle 0 Degrees
