  11. Diamond Turning Insert, Diamond, 4.83mm, GCHT, 0.18mm, Carbide

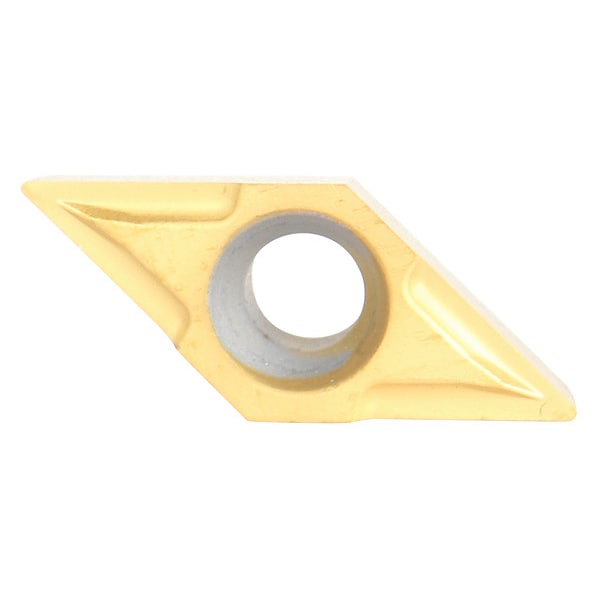

Widia Diamond Turning Insert, Diamond, 4.83mm, GCHT, 0.18mm, Carbide GCHT151505 - main

Diamond Turning Insert, Diamond, 4.83mm, GCHT, 0.18mm, Carbide

  • Mfr # GCHT151505

  • Zoro # G3874015

product price: $22.49
/ea
Sold in multiples of 5 for $112.45

Key Features

Insert Shape
Diamond
Insert Style
GCHT
Inscribed Circle
4.83mm
Insert Size
0.1902"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GCHT151505
Zoro #
G3874015
UPC #
4021169372520
Country of Origin
United States

Dimensions

Insert Size
0.1902"
Corner Radius
0.18mm
Insert Thickness
0.0930"
Mounting Hole Dia.
0.0940"
Thickness
1.5
Cutting Edge Length
6.83mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
GCHT
Inscribed Circle
4.83mm
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
ISO Number
GCHT060202
Coating
TiN
Cutting Direction
Neutral
Mounting Style
Taper Screw
Style
GCHT
Clearance Angle
7 Degrees
Secondary Material Application
Cast Iron
Material - Machining
Carbide
Primary Material Application ISO Code
M, N, P, S
Shape
Rhombic
Secondary Material Application ISO Code
K
Finish - Machining
TiN
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Manufacturer Grade
CG5
Included Angle
45 Degrees
Chip-Breaker Style
On One Side
Number of Cutting Edges
2
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Cutting Application
Turning
Measurement System
Metric
ANSI Code
GCHT151505
Material
Carbide
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 4.83mm, TiN, ANSI Code GCHT151505, Chip-Breaker Style On One Side, Clearance Angle 7 Degrees

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
