  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

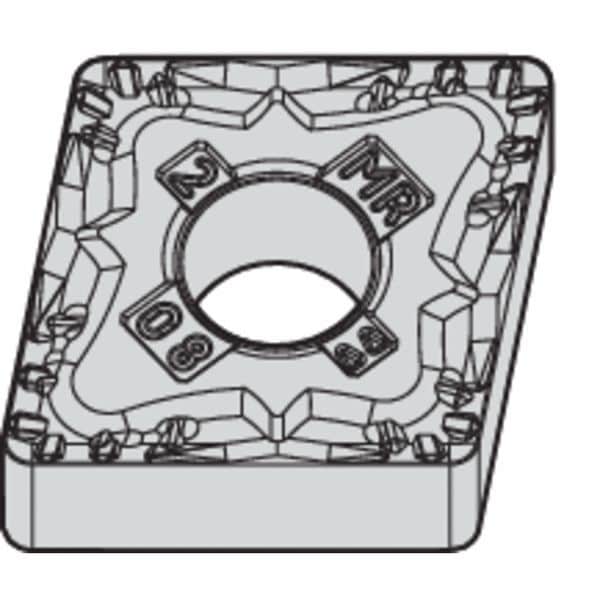

Widia Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542MR - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542MR

  • Zoro # G2811328

product price: $18.19
/ea
Sold in multiples of 10 for $181.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542MR
Zoro #
G2811328
UPC #
-
Country of Origin
India

Dimensions

Insert Size
542
Corner Radius
2
Insert Thickness
0.2500"
Mounting Hole Dia.
0.250"
Nose Radius
0.031"
Thickness
4
Cutting Edge Length
16.12mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
WP25CT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG160608MR
Workpiece Compatibility
Cast Iron (K), Steel (P)
Super Alloy (S) Compatibility
No
Relief Angle
0 Degrees
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
ANSI Number
CNMG542MR
Mounting Style
Clamp
Hardened (H) Compatibility
No
Coating
Tin
Stainless (M) Compatibility
No
No. of Edges
8
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Primary Material Application ISO Code
P
Primary Material Application
Steel
Insert Holding Type
Straight Hole
ANSI Code
CNMG542MR
Secondary Material Application
Cast Iron
Shape
Rhombic
Secondary Material Application ISO Code
K
Included Angle
80 Degrees
Number of Cutting Edges
8
Chip-Breaker Style
On Two Sides
Chip-Breaker Code
MR
Manufacturer Grade
WP25CT
Material - Machining
Carbide
Cutting Application
Turning
Finish - Machining
TiN
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Material
Carbide
Style
CNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code MR, Inscribed Circle 5/8 in, TiN, ANSI Code CNMG542MR, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
