  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

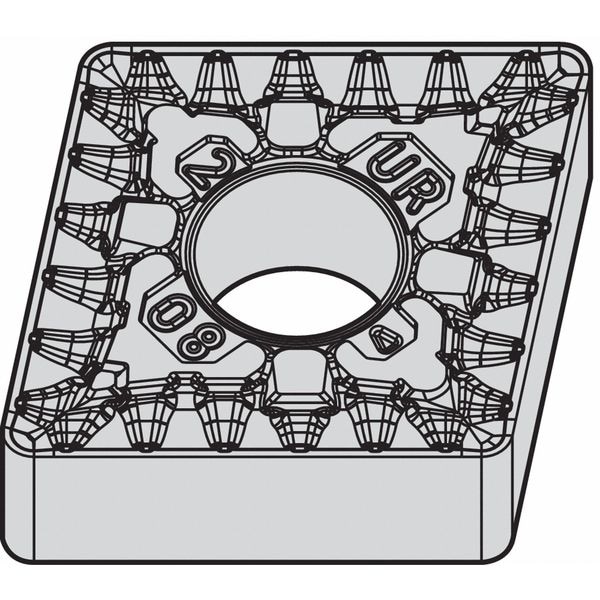

Widia Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542UR - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542UR

  • Zoro # G2808552

product price: $15.69
/ea
Sold in multiples of 10 for $156.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542UR
Zoro #
G2808552
UPC #
-
Country of Origin
India

Dimensions

Insert Size
542
Corner Radius
2
Nose Radius
0.031"
Mounting Hole Dia.
0.250"
Insert Thickness
0.2500"
Thickness
4
Cutting Edge Length
16.12mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
WM15CT
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMG160608UR
Cutting Direction
Neutral
Relief Angle
0 Degrees
Mounting Style
Clamp
Coating
Tin
Workpiece Compatibility
Stainless (M), Steel (P)
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
No. of Edges
8
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
ANSI Number
CNMG542UR
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
No
Chip-Breaker Code
UR
Chip-Breaker Style
On Two Sides
Finish - Machining
TiN
Number of Cutting Edges
8
Measurement System
Fractional Inch
Included Angle
80 Degrees
Secondary Material Application ISO Code
P
Manufacturer Grade
WM15CT
ANSI Code
CNMG542UR
Clearance Angle
0 Degrees
Primary Material Application
Stainless Steel
Secondary Material Application
Steel
Material - Machining
Carbide
Shape
Rhombic
Insert Holding Type
Straight Hole
Primary Material Application ISO Code
M
Cutting Application
Turning
Material
Carbide
Style
CNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code UR, Inscribed Circle 5/8 in, TiN, ANSI Code CNMG542UR, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
