  11. Diamond Turning Insert, Diamond, 5, CNMG, 3, Carbide

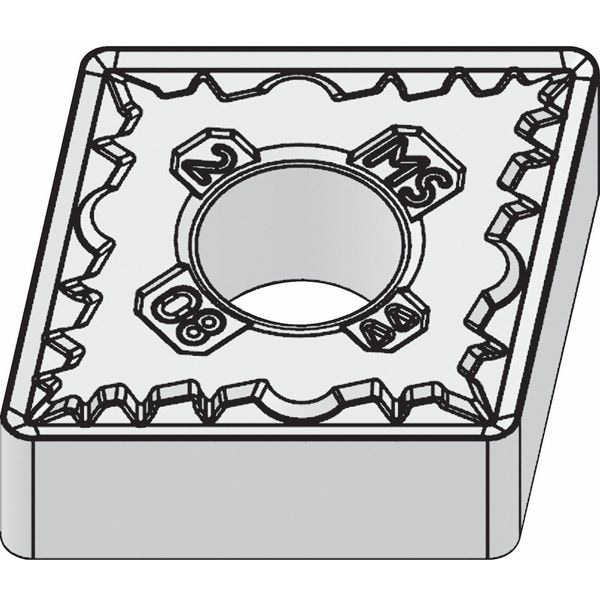

Widia Diamond Turning Insert, Diamond, 5, CNMG, 3, Carbide CNMG543MS - main

Diamond Turning Insert, Diamond, 5, CNMG, 3, Carbide

  • Mfr # CNMG543MS

  • Zoro # G2818179

product price: $25.49
/ea
Sold in multiples of 5 for $127.45

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
534
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG543MS
Zoro #
G2818179
UPC #
-
Country of Origin
United States

Dimensions

Insert Size
534
Corner Radius
3
Insert Thickness
0.2500"
Nose Radius
0.047"
Mounting Hole Dia.
0.250"
Cutting Edge Length
16.12mm
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
WS25PT
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG160612MS
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Relief Angle
0 Degrees
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
Yes
Cutting Direction
Neutral
ANSI Number
CNMG543MS
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
Coating
ALOX-SN
No. of Edges
8
Mounting Style
Clamp
Cutting Application
Turning
Primary Material Application ISO Code
M, S
Shape
Rhombic
Primary Material Application
Nickel, Stainless Steel, Titanium
ANSI Code
CNMG543MS
Included Angle
80 Degrees
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Secondary Material Application ISO Code
K, N, P
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Number of Cutting Edges
8
Chip-Breaker Code
MS
Measurement System
Fractional Inch
Manufacturer Grade
WS25PT
Chip-Breaker Style
On Two Sides
Material - Machining
Carbide
Material
Carbide
Style
CNMG
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Chip-Breaker Code MS, Inscribed Circle 5/8 in, ANSI Code CNMG543MS, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
