  11. Diamond Turning Insert, Diamond, 5/32 in, CDHH, 0.18mm

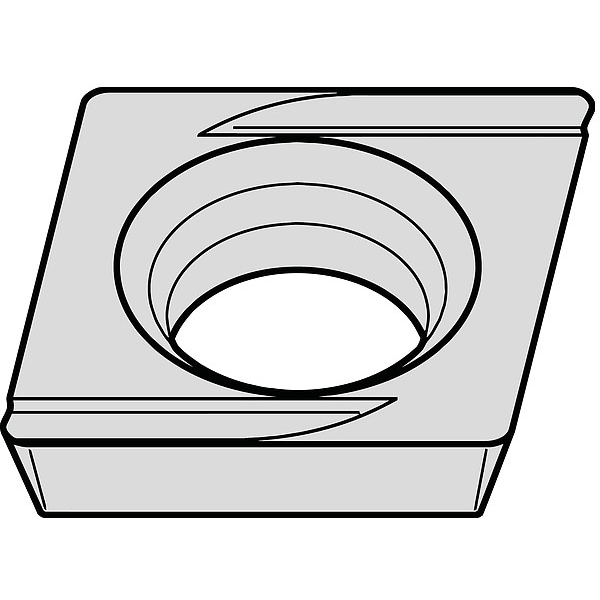

Widia Diamond Turning Insert, Diamond, 5/32 in, CDHH, 0.18mm CDHH120605 - main

Diamond Turning Insert, Diamond, 5/32 in, CDHH, 0.18mm

  • Mfr # CDHH120605

  • Zoro # G3878793

product price: $17.29
/ea
Sold in multiples of 5 for $86.45

Key Features

Insert Shape
Diamond
Insert Style
CDHH
Inscribed Circle
5/32 in
Insert Size
0.1563"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDHH120605
Zoro #
G3878793
UPC #
4021169353444
Country of Origin
United States

Dimensions

Insert Size
0.1563"
Corner Radius
0.18mm
Insert Thickness
0.0400"
Thickness
2.5
Cutting Edge Length
4.03mm

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CDHH
Inscribed Circle
5/32 in
Chip-Breaker
Yes
Grade
CM1
ISO Number
CDHHS4T002
Style
CDHH
Cutting Direction
Neutral
Mounting Style
Taper Screw
ANSI Code
CDHH120605
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Primary Material Application
Nickel, Titanium
Included Angle
80 Degrees
Chip-Breaker Style
On One Side
Manufacturer Grade
CM1
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
Cutting Application
Turning
Shape
Rhombic
Material - Machining
Carbide
Secondary Material Application ISO Code
K, M, N, P
Measurement System
Metric
Number of Cutting Edges
2
Primary Material Application ISO Code
S
Finish - Machining
Bright (Uncoated)
Clearance Angle
15 Degrees
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 5/32 in, Bright (Uncoated), ANSI Code CDHH120605, Chip-Breaker Style On One Side, Clearance Angle 15 Degrees
