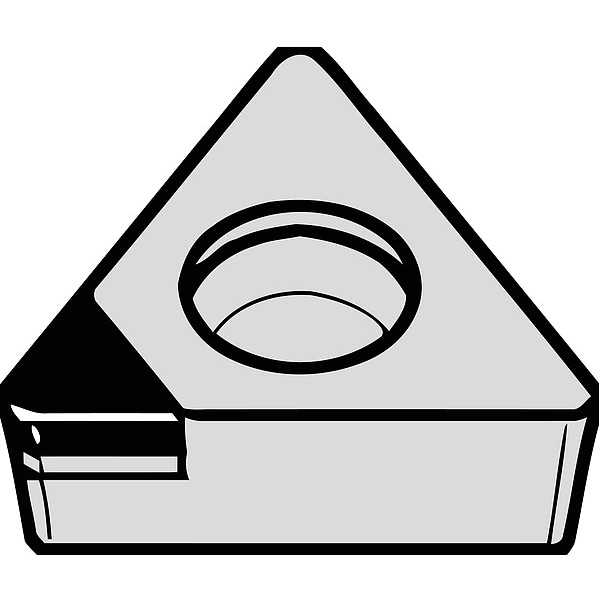

Widia Diamond Turning Insert, Triangle, 3, TPGW, 1/64 in, Diamond TPGW3251FST - main

Diamond Turning Insert, Triangle, 3, TPGW, 1/64 in, Diamond

  • Mfr # TPGW3251FST

  • Zoro # G3874340

product price: $118.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Triangle
Insert Style
TPGW
Inscribed Circle
3
Insert Size
0.3750"
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPGW3251FST
Zoro #
G3874340
UPC #
4021169696169
Country of Origin
United States

Dimensions

Insert Size
0.3750"
Corner Radius
1/64 in
Insert Thickness
0.1563"
Mounting Hole Dia.
0.1732"
Through Hole Inside Dia.
0.1730 in
Cutting Edge Length
16.50mm
Thickness
5/32 in

Details

Item
Diamond Turning Insert
Insert Shape
Triangle
Insert Style
TPGW
Inscribed Circle
3
Chip-Breaker
No
Grade
WDN25U
Insert Material
Diamond
Rake
Positive
ISO Number
TPGW16T304FST
Mounting Style
Taper Screw
Coating
Bright (Uncoated)
Style
TPGW
Cutting Direction
Neutral
Primary Material Application ISO Code
N
Manufacturer Grade
WDN25U
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Cutting Application
Turning
Included Angle
60 Degrees
Cutting Material Coverage
Single Tip
Clearance Angle
11 Degrees
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Material - Machining
Polycrystalline Diamond
Number of Cutting Edges
1
Measurement System
Fractional Inch
ANSI Code
TPGW3251FST
Finish - Machining
Bright (Uncoated)
Shape
Triangle
Cutting Edge
Sharp Edge
Material
Diamond
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code TPGW3251FST, Clearance Angle 11 Degrees
