  6. End Mill, 0.2500 in. Milling Dia., 5A03

This item is Discontinued.

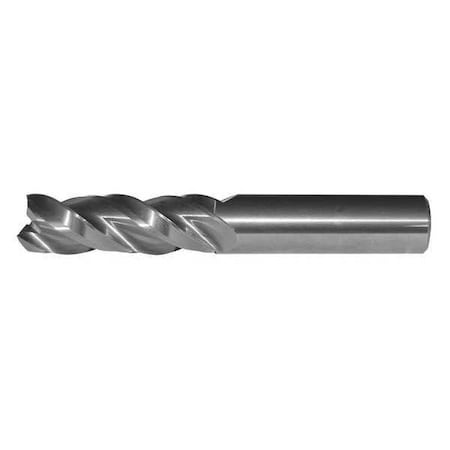

Widia End Mill, 0.2500 in. Milling Dia., 5A03 5A0307002

End Mill, 0.2500 in. Milling Dia., 5A03 (Discontinued)

  • Mfr # 5A0307002
  • Zoro # G3828450
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5A0307002
Zoro #
G3828450
UPC #
-
Country of Origin
Israel

Dimensions

Dimension Type
Decimal inch
Milling Diameter
1/4"
Length of Cut
1/2 in
Shank Dia.
1/4 in
Overall Length
2 1/2 in
Milling Dia.
1/4 in
Neck Length
0 in

Details

End Mill Material
Carbide
Number of Flutes
3
Single End/Double End
Single End
End Mill Cutting Type
Center Cutting
Grade
Bright (Uncoated)
Finish
Bright (Uncoated)
Shank Type
Straight
Super Alloy (S) Compatibility
No
Item
Square End Mill
Cutting Direction
Right Hand
End Mill Application
Finishing
Helix Angle
38 Degrees
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
Yes
End Mill Style
Square
Steel (P) Compatibility
No
Hardened (H) Compatibility
No
List Number
5A03
Stainless (M) Compatibility
No
Finish - Machining
Bright (Uncoated)
Measurement System
Fractional Inch
Material - Machining
Carbide
Material Grade - Machining
Bright (Uncoated)
Shank Type - Machining
Straight
Drilling Tool Configuration
Individual
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
N
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium

Description

Square End Mill, 1/4 in Milling Dia., Carbide, Bright (Uncoated), Non-Coolant Through, Straight, Length of Cut 1/2 in, Overall Length 2 1/2 in, Shank Dia. 1/4 in
