  11. End Mill, 20.00mm Milling Dia., 57

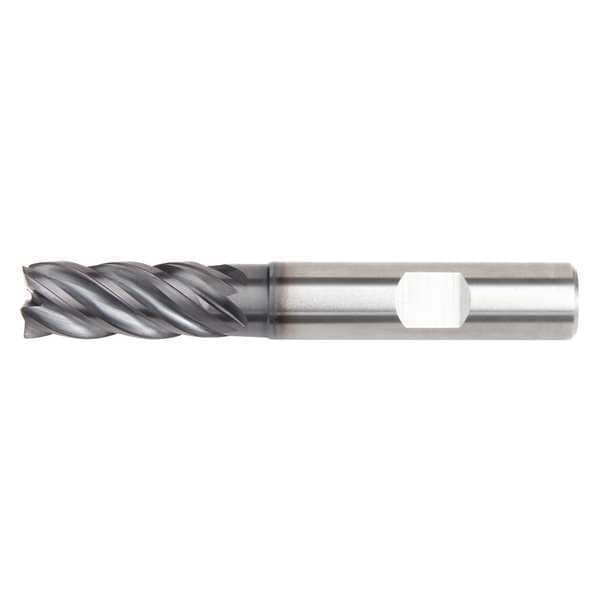

Widia End Mill, 20.00mm Milling Dia., 57 57NE20037W - main

End Mill, 20.00mm Milling Dia., 57

  • Mfr # 57NE20037W

  • Zoro # G3917798

product price: $395.99
/ea
Free Shipping & Returns

Key Features

Measurement System
Metric
Overall Length
115 mm
Milling Diameter
20.00mm
Number of Flutes
5
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
57NE20037W
Zoro #
G3917798
UPC #
-
Country of Origin
Israel

Dimensions

Overall Length
115 mm
Milling Diameter
20.00mm
Length of Cut
38 mm
Corner Radius
1 mm
Milling Dia.
20 mm
Neck Length
22.00mm
Shank Dia.
20 mm
Dimension Type
Metric

Details

Measurement System
Metric
Number of Flutes
5
End Mill Style
Corner-Radius
Finish
AlTiN
End Mill Cutting Type
Center Cutting
Helix Angle
38 Degrees
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
End Mill Material
Carbide
Single End/Double End
Single
Grade
WS15PE
Hardened (H) Compatibility
Yes
List Number
57NE
Cutting Direction
Right Hand
Steel (P) Compatibility
Yes
Shank Type
Weldon
Cast Iron (K) Compatibility
No
Item
Corner Radius End Mill
Super Alloy (S) Compatibility
Yes
End Mill Application
Finishing
Material - Machining
Carbide
Finish - Machining
AlTiN
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Material Grade - Machining
WS15PE
Primary Material Application
Hardened Steel, Stainless Steel
Primary Material Application ISO Code
H, M
Coolant Fed
Non-Coolant Through
Series
VariMill II ER
Max. Helix Angle
38 Degrees

Description

Corner Radius End Mill, 20 mm Milling Dia., Carbide, AlTiN, Non-Coolant Through, Weldon Flat, Metric, 1 mm, 38 mm, 115 mm
