  11. End Mill, TiAlN, 0.5000 in. Milling Dia.

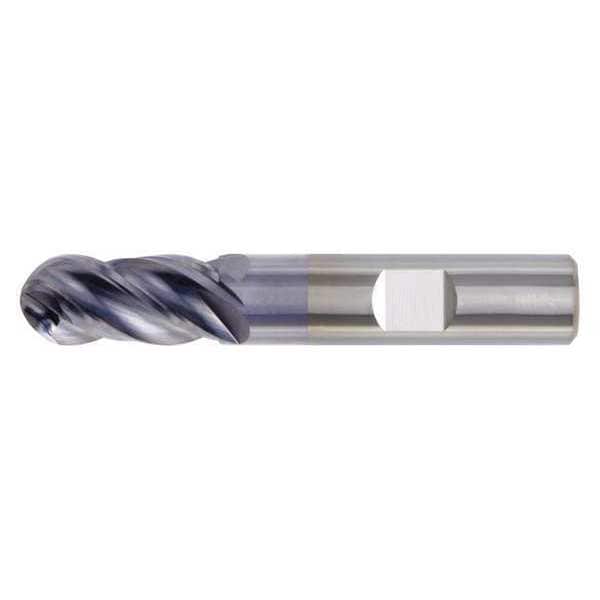

Widia End Mill, TiAlN, 0.5000 in. Milling Dia. TF4V0013015 - main

End Mill, TiAlN, 0.5000 in. Milling Dia.

  • Mfr # TF4V0013015

  • Zoro # G3831585

product price: $120.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Decimal inch
Milling Diameter
1/2"
End Mill Material
Carbide
Number of Flutes
4
Length of Cut
1.25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TF4V0013015
Zoro #
G3831585
UPC #
-
Country of Origin
Israel

Dimensions

Dimension Type
Decimal inch
Milling Diameter
1/2"
Length of Cut
1.25 in
Shank Dia.
1/2 in
Milling Dia.
0.5 in
Overall Length
3 in

Details

End Mill Material
Carbide
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
TIALN-LW
Helix Angle
38 Degrees
Shank Type
Weldon
End Mill Application
Roughing/Finishing
List Number
4V00
Non Ferrous (N) Compatibility
No
End Mill Style
Ball Nose
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
Item
Ball End Mill
Hardened (H) Compatibility
Yes
Cutting Direction
Right Hand
Finish
TiAlN
Super Alloy (S) Compatibility
Yes
Material - Machining
Carbide
Coolant Fed
Non-Coolant Through
Measurement System
Inch
Primary Material Application
Cast Iron, Hardened Steel, Stainless Steel, Steel
Finish - Machining
TiAlN
Material Grade - Machining
TiAlN-LW
Primary Material Application ISO Code
H, K, M, P
Shank Type - Machining
Weldon Flat
Drilling Tool Configuration
Individual
Series
VariMill I
Secondary Material Application ISO Code
S
Secondary Material Application
Nickel, Titanium
Flute Spacing
Variable
Flute Type
Spiral

Description

Ball End Mill, 0.5 in Milling Dia., Carbide, TiAlN, Non-Coolant Through
