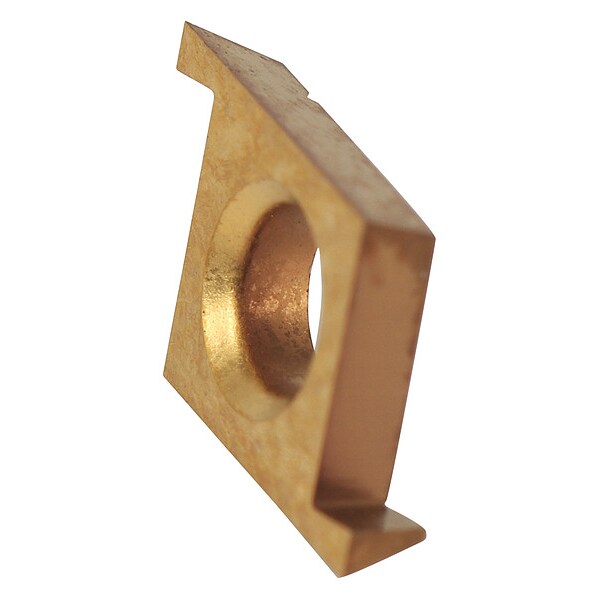

Widia Grooving/Parting Insert, CDG, Carbide CDG50252R - main

Grooving/Parting Insert, CDG, Carbide

  • Mfr # CDG50252R

  • Zoro # G3596833

product price: $30.39
/ea
Sold in multiples of 10 for $303.90

Key Features

Style
Small Hole Boring Positive Inserts
Width
0.0250 in
Chip-Breaker
No
Grade
CG5
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDG50252R
Zoro #
G3596833
UPC #
4021169354472
Country of Origin
United States

Dimensions

Width
0.0250 in
Insert Size
5
Depth of Cut
0.0400 in
Seat Size
5
Thickness
0.0500 in
Max. Grooving Width
0.0250 in

Details

Item
Parting and Grooving Insert
Style
Small Hole Boring Positive Inserts
Chip-Breaker
No
Grade
CG5
Cutting Direction
Right Hand
Mounting Style
Taper Screw
Application
Grooving
Lead Angle
15 Degrees
No. of Edges
2
ISO Number
CDG50252R
Insert Style
CDG
Included Angle
80 Degrees
Secondary Material Application
Cast Iron
Secondary Material Application ISO Code
K
Inscribed Circle
5/32 in
Manufacturer Grade
CG5
Finish - Machining
TiN
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Feed Type
High
Number of Cutting Edges
2
Material - Machining
Carbide
Cutting Application
Grooving
Clearance Angle
15 Degrees
Measurement System
Fractional Inch
ANSI Code
CDG50252R
Primary Material Application ISO Code
M, N, P, S
Coating Process
PVD

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 0.0250 in, ANSI Code CDG50252R, Clearance Angle 15 Degrees , Coating Process PVD
