Widia

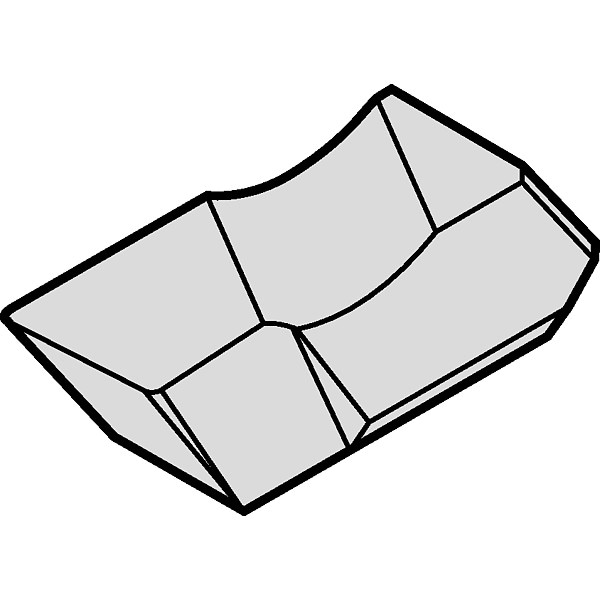

Grooving/Parting Insert, NG-1L, Carbide

product price: $14.99
/ea
Sold in multiples of 5 for $74.95
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Seat Size 1
  • Width 0.1000 in
  • Chip-Breaker No
  • Grade TN6025
  • Cutting Direction Left Hand
See all product information

Product Information

Dimensions

Insert Seat Size 1
Width 0.1000 in
Corner Radius 0.0100 in
Insert Size 1
Seat Size 1
Max. Grooving Width 0.0470 in
Depth of Cut 0.0750 in

Details

Item Parting and Grooving Insert
Chip-Breaker No
Grade TN6025
Cutting Direction Left Hand
Application Grooving
Rake Neutral
ISO Number NG1047L
Lead Angle 26 Degrees
Insert Style NG-1L
Coating AlTiN
Mounting Style Notch
Manufacturer Grade TN6025
Measurement System Fractional Inch
Coating Process PVD
Material - Machining Carbide
Clearance Angle 26 Degrees
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
ANSI Code NG1047L
Thickness 0.1000 in
Feed Type High
Number of Cutting Edges 1
Secondary Material Application Aluminum, Brass, Bronze, Copper, Hardened Steel
Secondary Material Application ISO Code H, N
Cutting Application Grooving
Primary Material Application ISO Code K, M, P, S
Finish - Machining AlTiN
Hole Type No Hole

Description

Parting and Grooving Insert, Left Hand, Max. Grooving Width 0.0470 in, ANSI Code NG1047L, Clearance Angle 26 Degrees , Coating Process PVD
