Widia

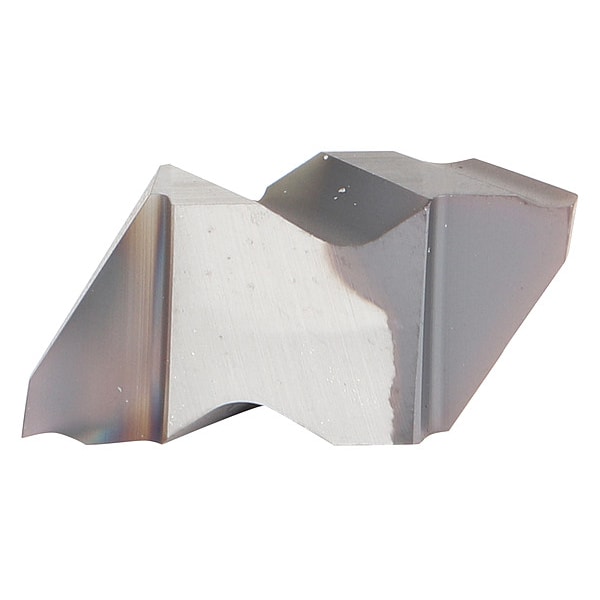

Grooving/Parting Insert, NP-K, Carbide

product price: $19.45
/ea
Sold in multiples of 10 for $194.50
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style NP-K
  • Insert Seat Size 2
  • Width 0.1510 in
  • Chip-Breaker Yes
  • Grade TN6010
See all product information

Product Information

Dimensions

Insert Seat Size 2
Width 0.1510 in
Insert Size 2
Corner Radius 0.0050 in
Seat Size 2
Max. Grooving Width 0.1500 in
Depth of Cut 0.1104 in

Details

Item Parting and Grooving Insert
Style NP-K
Chip-Breaker Yes
Grade TN6010
Cutting Direction Right Hand
Insert Material Carbide
Coating ALOX-SN
Insert Style NP-K
Rake 10 Degrees
Mounting Style Notch
Lead Angle 11 Degrees
ISO Number NP2002RK
Application Grooving
No. of Edges 2
Number of Cutting Edges 2
Clearance Angle 11 Degrees
Manufacturer Grade TN6010
Chip-Breaker Style Double Sided
Hole Type No Hole
Secondary Material Application Hardened Steel
Coating Process PVD
Chip-Breaker Code K
Thickness 0.2190 in
Primary Material Application ISO Code K, M, N, P, S
ANSI Code NP2002RK
Measurement System Fractional Inch
Secondary Material Application ISO Code H
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Material - Machining Carbide
Side Cutting Edge Angle 45 Degrees
Cutting Application Grooving

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 0.1500 in, Side Cutting Edge Angle 45 Degrees , ANSI Code NP2002RK, Chip-Breaker Code K, Chip-Breaker Style Double Sided, Clearance Angle 11 Degrees , Coating Process PVD
