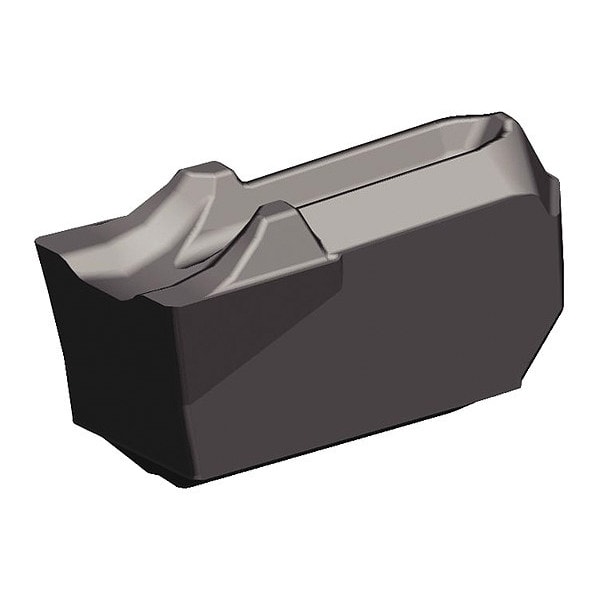

Widia Grooving/Parting Insert, WC-U-R, Carbide WC020M02R06R02 - main

Grooving/Parting Insert, WC-U-R, Carbide

  • Mfr # WC020M02R06R02

  • Zoro # G3599380

product price: $14.69
/ea
Sold in multiples of 5 for $73.45

Key Features

Style
Precision Molded
Insert Seat Size
2
Width
1.60mm
Chip-Breaker
Yes
Grade
WU25PT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WC020M02R06R02
Zoro #
G3599380
UPC #
4059782546813
Country of Origin
Germany

Dimensions

Insert Seat Size
2
Width
1.60mm
Overall Length
8.97mm
Corner Radius
0.20mm
Insert Size
2
Seat Size
2
Max. Grooving Width
2.00mm
Thickness
3.22mm
Reference Length
8.97mm

Details

Item
Parting and Grooving Insert
Style
Precision Molded
Chip-Breaker
Yes
Grade
WU25PT
Cutting Direction
Right Hand
No. of Edges
1
Application
Grooving
Coating
AlTiN
Lead Angle
10.5 Degrees
Insert Style
WC-U-R
Mounting Style
Convex Prismatic Cross Section
ISO Number
WC020M02R06R02
Insert Material
Carbide
Primary Material Application ISO Code
S
ANSI Code
WC020M02R06R02
Number of Cutting Edges
1
Material - Machining
Carbide
Measurement System
Metric
Chip-Breaker Code
F
Finish - Machining
AlTiN
Manufacturer Grade
WU25PT
Hole Type
No Hole
Side Cutting Edge Angle
6 Degrees
Cutting Application
Grooving
Chip-Breaker Style
On One Side
Coating Process
PVD
Clearance Angle
10.5 Degrees
Primary Material Application
Nickel, Titanium

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 2.00mm, Side Cutting Edge Angle 6 Degrees , ANSI Code WC020M02R06R02, Chip-Breaker Code F, Chip-Breaker Style On One Side, Clearance Angle 10.5 Degrees , Coating Process PVD
