  11. Grooving/Parting Insert, WMT-U-PH, Carbide

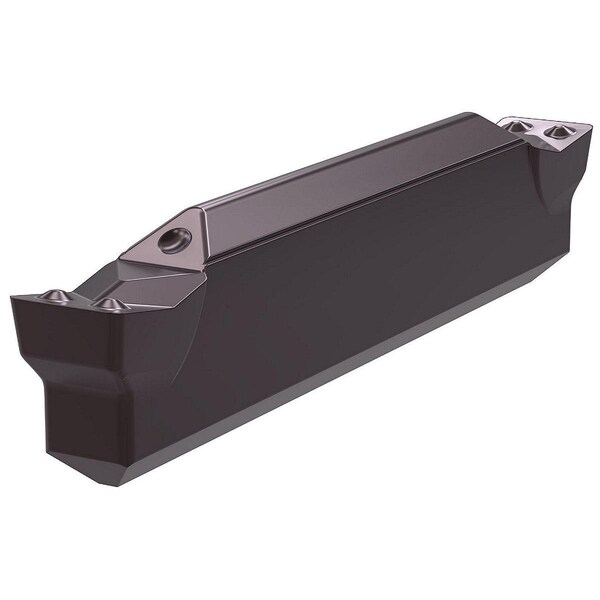

Widia Grooving/Parting Insert, WMT-U-PH, Carbide WMTS800M8P03PH - main

Grooving/Parting Insert, WMT-U-PH, Carbide

  • Mfr # WMTS800M8P03PH

  • Zoro # G3592755

product price: $40.59
/ea
Sold in multiples of 5 for $202.95

Key Features

Style
WMT
Insert Seat Size
8
Width
5.84mm
Chip-Breaker
Yes
Grade
WU25PT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WMTS800M8P03PH
Zoro #
G3592755
UPC #
4050839385638
Country of Origin
United States

Dimensions

Insert Seat Size
8
Width
5.84mm
Overall Length
28.57mm
Insert Size
8
Corner Radius
0.30mm
Reference Length
28.57mm
Max. Grooving Width
8.00mm
Thickness
6.94mm
Seat Size
8

Details

Item
Parting and Grooving Insert
Style
WMT
Chip-Breaker
Yes
Grade
WU25PT
Cutting Direction
Neutral
No. of Edges
2
Insert Material
Carbide
ISO Number
WMTS800M8P03PH
Coating
AlTiN
Mounting Style
Convex Prismatic Cross Section
Lead Angle
7 Degrees
Application
Grooving
Insert Style
WMT-U-PH
Secondary Material Application
Cast Iron, Steel
Clearance Angle
7 Degrees
ANSI Code
WMTS800M8P03PH
Measurement System
Metric
Cutting Application
Grooving, Turning
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Titanium
Primary Material Application ISO Code
M, N, S
Number of Cutting Edges
2
Feed Type
High
Hole Type
No Hole
Material - Machining
Carbide
Chip-Breaker Style
On One Side
Secondary Material Application ISO Code
K, P
Finish - Machining
AlTiN
Coating Process
PVD
Chip-Breaker Code
PH
Manufacturer Grade
WU25PT

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 8.00mm, ANSI Code WMTS800M8P03PH, Chip-Breaker Code PH, Chip-Breaker Style On One Side, Clearance Angle 7 Degrees , Coating Process PVD
