Grooving/Parting Toolholder, WMT, RH
Mfr # WMTCR82B062
Zoro # G3749740
product price: $180.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
Square
Material
High Speed Steel
Cutting Direction
Right Hand
Clamp Screw
3 mm
Shank Length
3.3100 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WMTCR82B062
Zoro #
G3749740
UPC #
4021169679964
Country of Origin
United States

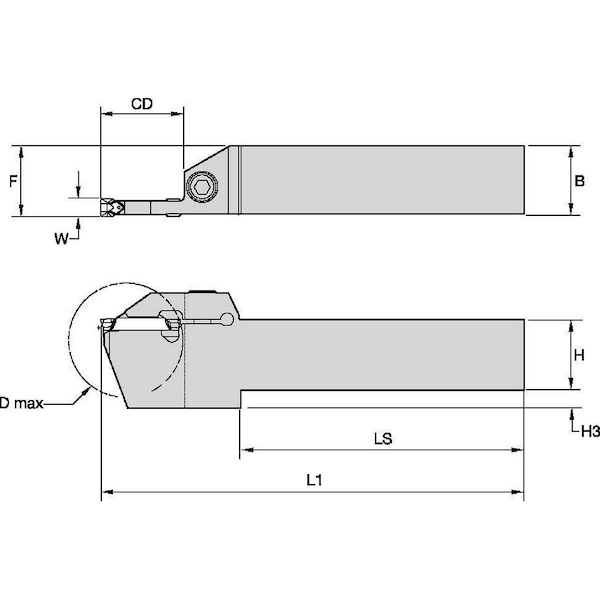

Dimensions
Shank Length
3.3100 in
Overall Length
4-1/2 in
Max. Grooving Width
2.38mm
Shank Width
1/2 in
Shank Height
1/2 in
Details
Item
Indexable Grooving and Parting Toolholder
Shank Shape
Square
Material
High Speed Steel
Cutting Direction
Right Hand
Clamp Screw
3 mm
Clamp
2.8100"
Series
WMT
Insert Shape
Bottom
Cutting Application
Cut-Off, Grooving, Profiling, Turning
ANSI Code
WMTCR82B062
Toolholder Style
WMT
ISO Number
WMTCR82B062
Offset Shank
Yes
Max. Overhang
0.1900 in
Coolant Fed
Non-Coolant Through
Measurement System
Decimal Inch
Lead Angle
90 Degrees
Description
Indexable Grooving and Parting Toolholder, Right Hand, Cut-Off, Grooving, Profiling, Turning, Shank Width 1/2 in, ANSI Code WMTCR82B062, Coolant Fed Non-Coolant Through
