  11. Indexable Boring Bar, A25RMVUNR16, 200.00mm L, High Speed Steel, 35 Degrees Diamond Insert Shape

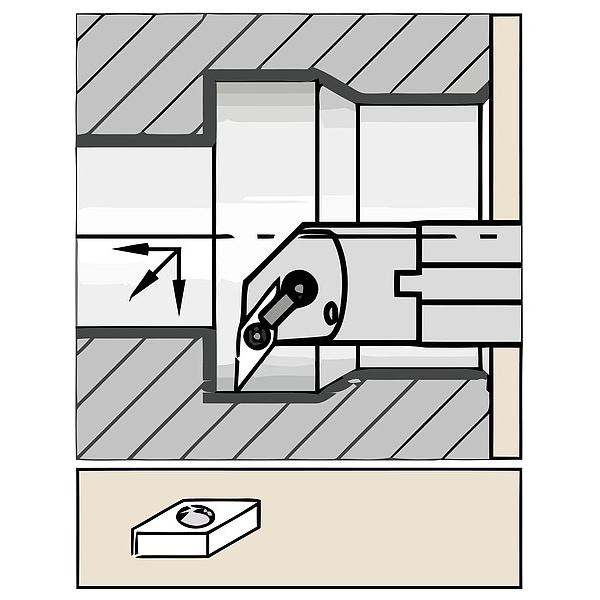

Widia Indexable Boring Bar, A25RMVUNR16, 200.00mm L, High Speed Steel, 35 Degrees Diamond Insert Shape A25RMVUNR16 - main

Indexable Boring Bar, A25RMVUNR16, 200.00mm L, High Speed Steel, 35 Degrees Diamond Insert Shape

  • Mfr # A25RMVUNR16

  • Zoro # G3576509

product price: $410.99
/ea
Free Shipping & Returns

Key Features

Overall Length
200.00mm
Shank Material
High Speed Steel
Insert Shape
35 Degrees Diamond
ANSI Code
A25RMVUNR16
Left/Right Hand
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A25RMVUNR16
Zoro #
G3576509
UPC #
4021169568022
Country of Origin
United States

Dimensions

Overall Length
200.00mm
Shank Dia.
25.00mm
Insert Size
160408
Min. Bore Dia.
37.00mm
Shank Length
145.03mm
Insert Cutting Edge Length
16.61mm

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
35 Degrees Diamond
ANSI Code
A25RMVUNR16
Left/Right Hand
Right Hand
Lead Angle
-3 Degrees
Rake
-10 Degrees Radial, -5 Degrees Axial
Cutting Direction
Right Hand
Type
Top and Hole Clamping
Number of Coolant Holes
1
Coolant Fed
Coolant Through
ISO Number
A25RMVUNR16
Side Cutting Edge Angle
-3 Degrees
Number of Inserts
1
Approach Angle
93 Degrees
Cutting Application
Boring
Center to Cutting Tip
22.00mm
Toolholder Style
A-MVUN
Head Material
Steel
Insert Holding Type
Clamp and Lock Pin
Insert Style
VN
Measurement System
Metric

Description

Indexable Boring Bar, A-MVUN, Insert Shape 35 Degrees Diamond, Overall Length 200.00mm, A25RMVUNR16, 93 Degrees , 22.00mm, Coolant Through, Boring, Right Hand
