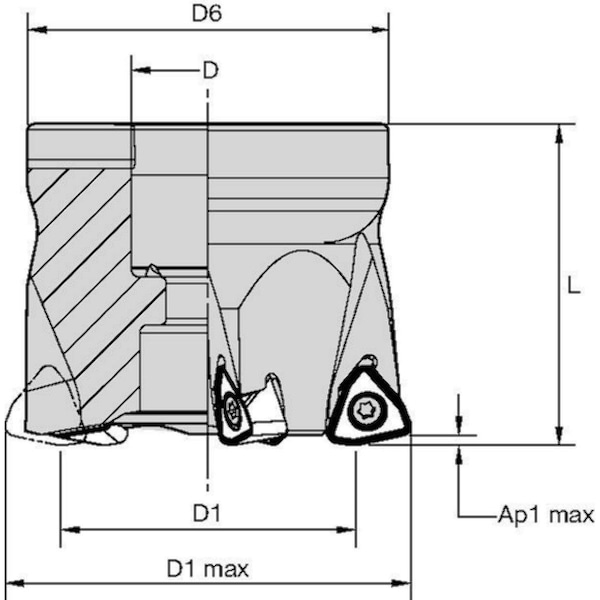

Indexable Face Mill, M370 Series, 1.4990" Max Cut Dia, High Speed Steel, 1.25mm Depth of Cut
- Mfr # 4056194
- Zoro # G3798573
product price:Â
$
665.99
/ea
Free Shipping & Returns
Key Features
Series
M370
Cutting Dia.
1.4990"
Overall Length
50.00mm
Number of Inserts Required
5
Depth of Cut
1.25mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 4056194
- Zoro #
- G3798573
- UPC #
- 4021169616396
- Country of Origin
- Multiple
- Item
- Indexable Face Mill
- Series
- M370
- Number of Inserts Required
- 5
- Material - Machining
- High Speed Steel
- Cutting Direction
- Right Hand
- ANSI Code
- M370D052Z05WO08
- Insert Style
- WOEJ SRMH
- Features
- Double-Sided, First Choice for Roughing Applications, High Metal Removal Rates, Six Cutting Edges
- Insert Holding Type
- Screw
- Rake
- -11 Degrees Axial, -12 Degrees Radial
- Coolant Fed
- Coolant Through
- Number of Inserts
- 5
- Max. Speed
- 28,600 RPM
- Insert Shape
- Trigon
- Compatible Hardware
- Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9
- Cutting Application
- 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
- ISO Number
- M370D052Z05WO08
- Number of Flutes
- 5
Description
Indexable Face Mill, Max. Cutting Dia. 52.00mm, Arbor Dia. 22.00mm, Depth of Cut 1.25mm, ANSI Code M370D052Z05WO08, Compatible Hardware Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 9 IP9, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Plunge Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Roughing, Slotting: Square End
