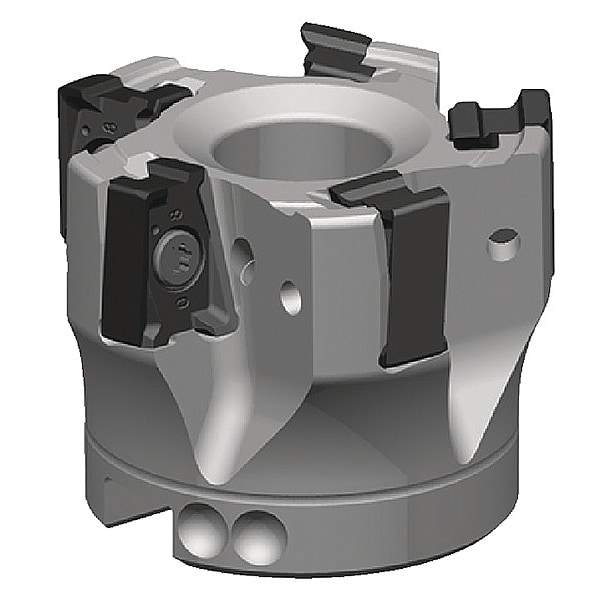

Indexable Face Mill, VSM490-15 Series, High Speed Steel, 15.00mm Depth of Cut
Mfr # 5873107
Zoro # G3781615
product price:Â $1,138.99
/ea
Free Shipping & Returns
Key Features
Series
VSM490-15
Overall Length
60.45mm
Depth of Cut
15.00mm
Material - Machining
High Speed Steel
Insert Size
15T608
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
5873107
Zoro #
G3781615
UPC #
4050841729888
Country of Origin
United States
Dimensions
Overall Length
60.45mm
Depth of Cut
15.00mm
Insert Size
15T608
Arbor Dia.
1-1/2 in
Hub Outside Dia.
99.25mm
Details
Item
Indexable Face Mill
Series
VSM490-15
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill 4
Number of Flutes
9
Type
Face Mill
Rake
-13.606 Degrees Radial, -8 Degrees Axial
Insert Style
XNGU SRMM
Number of Inserts
9
Max. Speed
9,600 RPM
Insert Holding Type
Screw
Features
Effective Internal Coolant Feature, in Stepless in Solution, Precisely Reaching the Cutting Edge, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes
ISO Number
VSM490D500Z09S150XN15
Coolant Fed
Coolant Through
Compatible Hardware
Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 Ip15, KLS-15 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP
Cutting Application
Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
ANSI Code
VSM490D500Z09S150XN15
Material
High Speed Steel
Description
Indexable Face Mill, Arbor Dia. 1-1/2 in, Depth of Cut 15.00mm, ANSI Code VSM490D500Z09S150XN15, Compatible Hardware Anti-Seize Lubricant, Coolant Screw Assembly, Insert Screw M4x0.7 x 10 Ip15, KLS-15 Shell Mill Lock Screw, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through, Cutting Application Face Milling, Pocketing, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
