  11. Indexable Insert Drill, 1-1/2", TCF

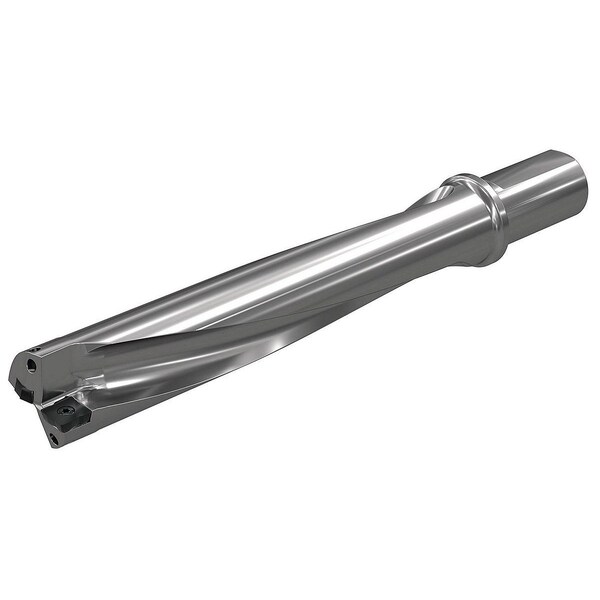

Widia Indexable Insert Drill, 1-1/2", TCF TCF1938R5SLR150G - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF1938R5SLR150G

  • Zoro # G3777932

product price: $822.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
5xD
Shank Length
2.7559 in
Shank Dia.
1-1/2 in
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1938R5SLR150G
Zoro #
G3777932
UPC #
4050841120524
Country of Origin
Germany

Dimensions

Diameter
1-1/2"
Shank Length
2.7559 in
Shank Dia.
1-1/2 in
Overall Length
14.3023 in
Max. Drilling Depth
9.7590 in
Depth x Dia. Ratio
5xD
Min. Drill Dia.
1-15/16 in
Flute Length
11.1920 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
ANSI Code
TCF1938R5SLR150G
Shank Type - Machining
Round with Flat and Side Lock
Flute Type
Slow Spiral
ISO Number
TCF1938R5SLR150G
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Number of Inserts
2
Number of Coolant Holes
2
Flanged Shank
Yes
Toolholder Style
TCF
Coolant Fed
Coolant Through
Spiral Direction
Right Hand
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 9.7590 in, TCF1938R5SLR150G, TCF, Coolant Through
