  11. Indexable Insert Drill, 40.00mm, TCF

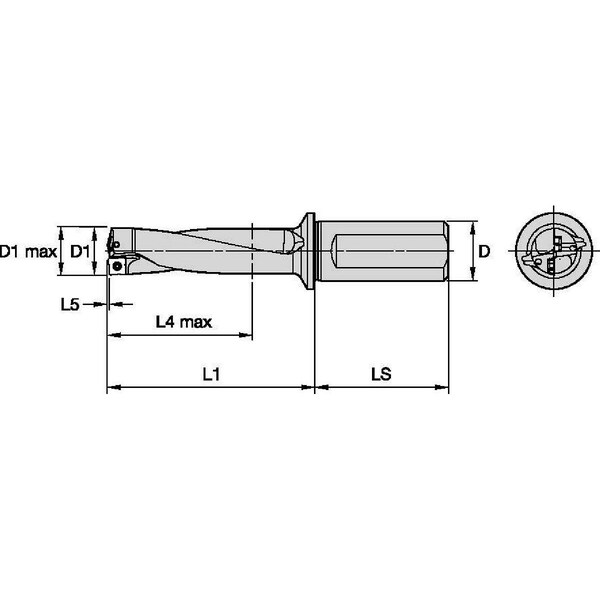

Widia Indexable Insert Drill, 40.00mm, TCF TCF670R3SLR40MH - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF670R3SLR40MH

  • Zoro # G3778230

product price: $962.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Overall Length
326.33mm
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF670R3SLR40MH
Zoro #
G3778230
UPC #
4050839904440
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Overall Length
326.33mm
Shank Length
70.00mm
Shank Dia.
40.00mm
Max. Drilling Depth
203.33mm
Depth x Dia. Ratio
3xD
Min. Drill Dia.
67.00mm
Flute Length
250.20mm
Max. Drill Dia.
68.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
ANSI Code
TCF670R3SLR40MH
Toolholder Style
TCF
Spiral Direction
Right Hand
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flanged Shank
Yes
ISO Number
TCF670R3SLR40MH
Coolant Fed
Coolant Through
Number of Inserts
2
Standards
ISO 9766
Number of Coolant Holes
2
Flute Type
Slow Spiral
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 203.33mm, TCF670R3SLR40MH, TCF, Coolant Through
