  11. Indexable Insert Drill, 1-1/4", TCF, Flute Length: 7.2360 in

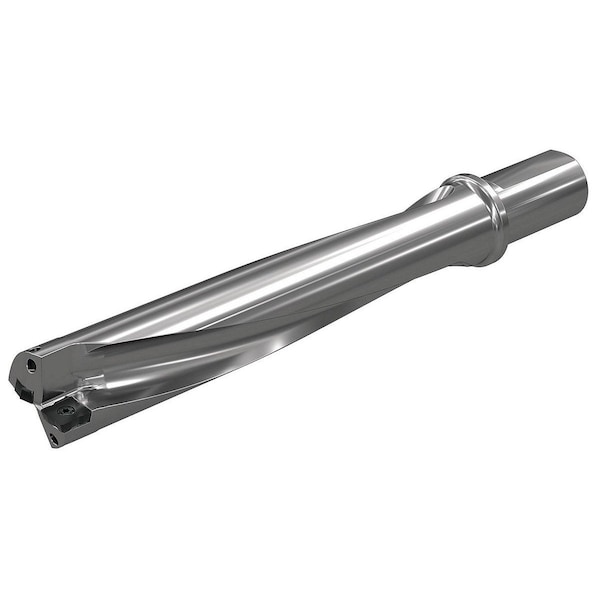

Widia Indexable Insert Drill, 1-1/4", TCF, Flute Length: 7.2360 in TCF1219R5SLR125E - main

Indexable Insert Drill, 1-1/4", TCF, Flute Length: 7.2360 in

  • Mfr # TCF1219R5SLR125E

  • Zoro # G3779439

product price: $735.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
5xD
Mounting Style
Screw Clamp
Shank Dia.
1-1/4 in
Overall Length
9.7954 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1219R5SLR125E
Zoro #
G3779439
UPC #
4050839894819
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/4"
Shank Dia.
1-1/4 in
Overall Length
9.7954 in
Shank Length
2.3622 in
Min. Drill Dia.
1-7/32 in
Max. Drilling Depth
6.1390 in
Flute Length
7.2360 in
Depth x Dia. Ratio
5xD

Details

Item
Indexable Insert Drill
Ratio
5xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Toolholder Style
TCF
Flanged Shank
Yes
Coolant Fed
Coolant Through
Central Insert Style
TCF
Number of Coolant Holes
2
Flute Type
Slow Spiral
Number of Inserts
2
Shank Type - Machining
Round with Flat and Side Lock
ANSI Code
TCF1219R5SLR125E
Spiral Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
ISO Number
TCF1219R5SLR125E
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 6.1390 in, TCF1219R5SLR125E, TCF, Coolant Through
