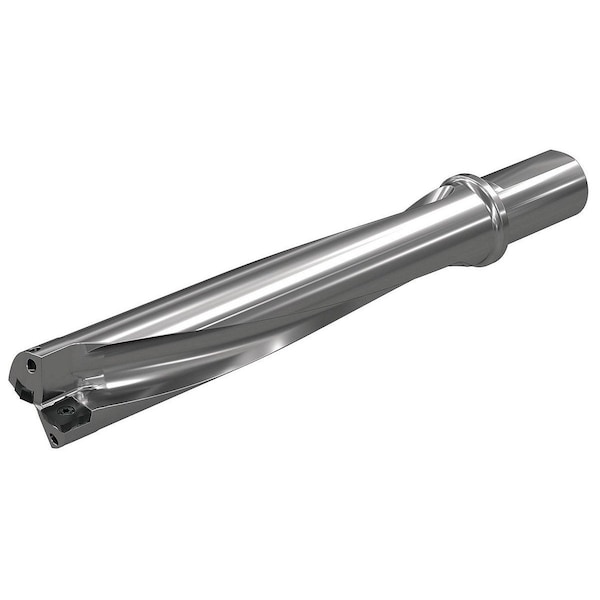

Widia Indexable Insert Drill, 1-1/4", TCF TCF1156R5SLR125D - main

Indexable Insert Drill, 1-1/4", TCF

  • Mfr # TCF1156R5SLR125D

  • Zoro # G3761595

product price: $731.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
5xD
Shank Length
2.3622 in
Mounting Style
Screw Clamp
Shank Dia.
1-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1156R5SLR125D
Zoro #
G3761595
UPC #
4050839889594
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/4"
Shank Length
2.3622 in
Shank Dia.
1-1/4 in
Overall Length
9.5358 in
Min. Drill Dia.
1-5/32 in
Max. Drilling Depth
5.8210 in
Depth x Dia. Ratio
5xD
Flute Length
6.9770 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Central Insert Style
TCF
ISO Number
TCF1156R5SLR125D
Coolant Fed
Coolant Through
Flute Type
Slow Spiral
Flanged Shank
Yes
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Number of Coolant Holes
2
Spiral Direction
Right Hand
ANSI Code
TCF1156R5SLR125D
Number of Inserts
2
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 5.8210 in, TCF1156R5SLR125D, TCF, Coolant Through
