Widia Indexable Insert Drill, 1-1/4", TCF TCF1219R4SLR125E - main

Indexable Insert Drill, 1-1/4", TCF

  • Mfr # TCF1219R4SLR125E

  • Zoro # G3778982

product price: $595.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
4xD
Shank Length
60.00mm
Overall Length
217.84mm
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1219R4SLR125E
Zoro #
G3778982
UPC #
4050839894000
Country of Origin
Germany

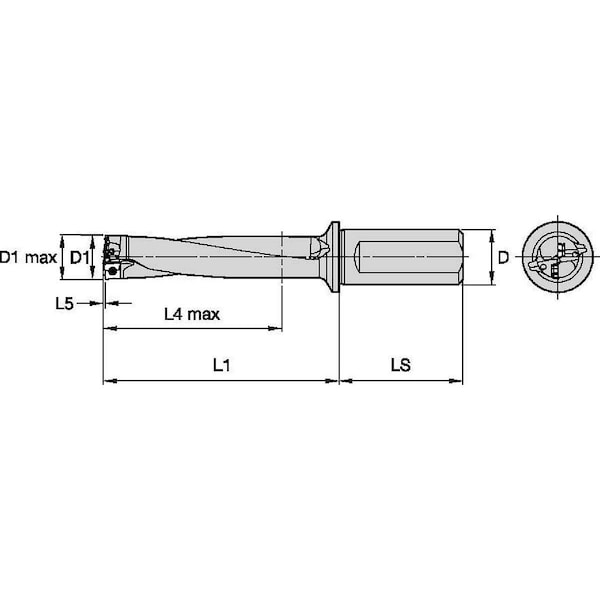

Dimensions

Diameter
1-1/4"
Shank Length
60.00mm
Overall Length
217.84mm
Shank Dia.
1-1/4 in
Depth x Dia. Ratio
4xD
Max. Drilling Depth
124.97mm
Flute Length
152.80mm
Min. Drill Dia.
30.96mm
Max. Drill Dia.
31.96mm

Details

Item
Indexable Insert Drill
Ratio
4xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
ANSI Code
TCF1219R4SLR125E
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flanged Shank
Yes
Shank Type - Machining
Round with Flat and Side Lock
Central Insert Style
TCF
Coolant Fed
Coolant Through
ISO Number
TCF1219R4SLR125E
Spiral Direction
Right Hand
Toolholder Style
TCF
Number of Inserts
2
Number of Coolant Holes
2
Flute Type
Slow Spiral
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 4xD, Max. Drilling Depth 124.97mm, TCF1219R4SLR125E, TCF, Coolant Through
