Widia Indexable Insert Drill, 1-1/4", TCF TCF1313R2SLR125E - main

Indexable Insert Drill, 1-1/4", TCF

  • Mfr # TCF1313R2SLR125E

  • Zoro # G3777339

product price: $537.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
2xD
Shank Dia.
1-1/4 in
Mounting Style
Screw Clamp
Overall Length
162.92mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1313R2SLR125E
Zoro #
G3777339
UPC #
4050839892655
Country of Origin
Bulgaria

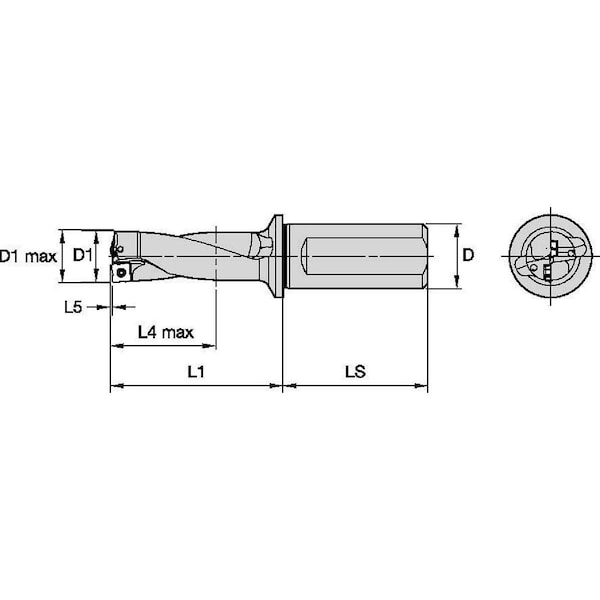

Dimensions

Diameter
1-1/4"
Shank Dia.
1-1/4 in
Overall Length
162.92mm
Shank Length
60.00mm
Flute Length
97.90mm
Depth x Dia. Ratio
2xD
Min. Drill Dia.
33.35mm
Max. Drilling Depth
67.89mm
Max. Drill Dia.
34.35mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Number of Coolant Holes
2
Spiral Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Coolant Fed
Coolant Through
Central Insert Style
TCF
ANSI Code
TCF1313R2SLR125E
Number of Inserts
2
ISO Number
TCF1313R2SLR125E
Flanged Shank
Yes
Flute Type
Slow Spiral
Shank Type - Machining
Round with Flat and Side Lock
Toolholder Style
TCF
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 67.89mm, TCF1313R2SLR125E, TCF, Coolant Through
