  11. Indexable Insert Drill, 1", TCF

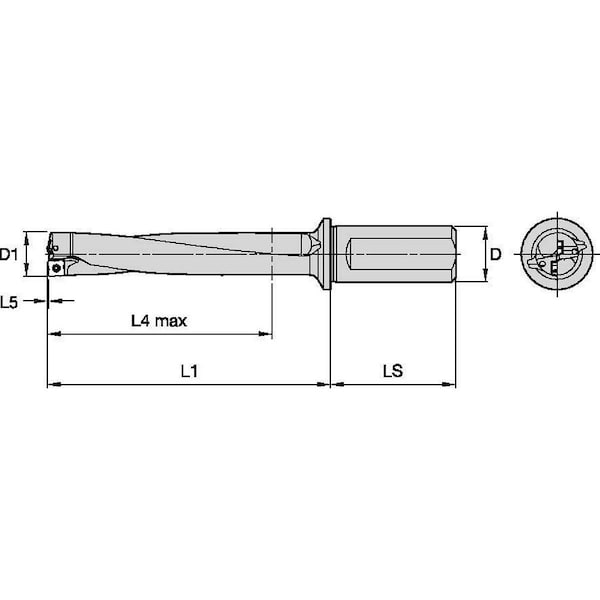

Widia Indexable Insert Drill, 1", TCF TCF0750R5SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0750R5SLR100C

  • Zoro # G3778291

product price: $694.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
5xD
Cutting Direction
Right Hand
Shank Dia.
1 in
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0750R5SLR100C
Zoro #
G3778291
UPC #
4050841106030
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Shank Dia.
1 in
Overall Length
6.9645 in
Shank Length
2.2047 in
Min. Drill Dia.
3/4 in
Depth x Dia. Ratio
5xD
Max. Drilling Depth
3.7770 in
Flute Length
4.6020 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Inserts
2
Toolholder Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Spiral Direction
Right Hand
Central Insert Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
ISO Number
TCF0750R5SLR100C
Flute Type
Slow Spiral
ANSI Code
TCF0750R5SLR100C
Flanged Shank
Yes
Coolant Fed
Coolant Through
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 3.7770 in, TCF0750R5SLR100C, TCF, Coolant Through
