  11. Indexable Insert Drill, 1", TCF
Widia Indexable Insert Drill, 1", TCF TCF0781R5SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0781R5SLR100C

  • Zoro # G3777433

product price: $669.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
5xD
Shank Dia.
1 in
Overall Length
7.1549 in
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0781R5SLR100C
Zoro #
G3777433
UPC #
4050841106122
Country of Origin
Germany

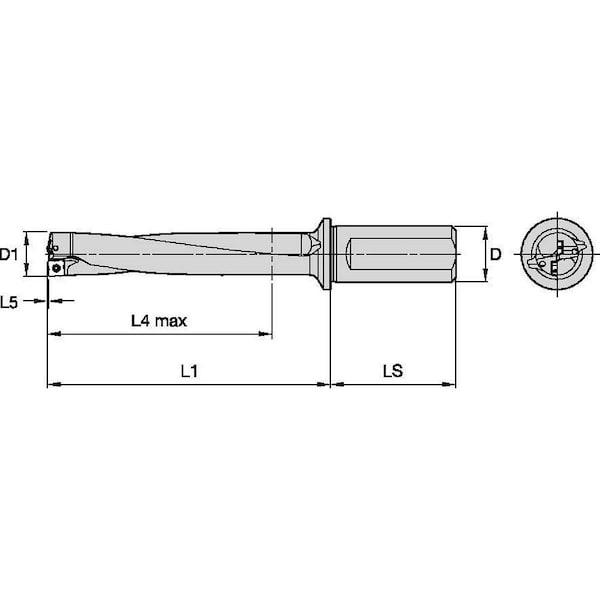

Dimensions

Diameter
1"
Shank Dia.
1 in
Overall Length
7.1549 in
Shank Length
2.2047 in
Flute Length
4.7920 in
Depth x Dia. Ratio
5xD
Min. Drill Dia.
25/32 in
Max. Drilling Depth
3.9330 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Flanged Shank
Yes
Coolant Fed
Coolant Through
ISO Number
TCF0781R5SLR100C
Toolholder Style
TCF
Number of Inserts
2
Number of Coolant Holes
2
ANSI Code
TCF0781R5SLR100C
Shank Type - Machining
Round with Flat and Side Lock
Flute Type
Slow Spiral
Spiral Direction
Right Hand
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 3.9330 in, TCF0781R5SLR100C, TCF, Coolant Through
