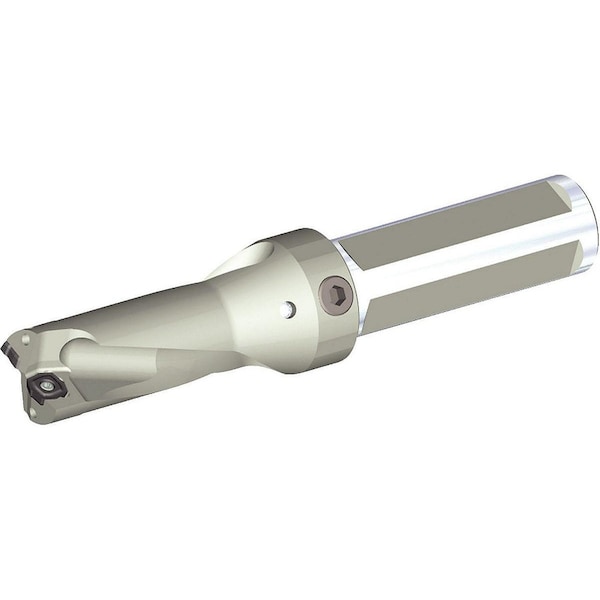

Widia Indexable Insert Drill, 1", TCF TCF0813R2SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0813R2SLR100C

  • Zoro # G3779113

product price: $529.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
2xD
Cutting Direction
Right Hand
Shank Dia.
1 in
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0813R2SLR100C
Zoro #
G3779113
UPC #
4050841104326
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Shank Dia.
1 in
Shank Length
56.00mm
Overall Length
124.76mm
Depth x Dia. Ratio
2xD
Min. Drill Dia.
20.65mm
Max. Drilling Depth
42.04mm
Flute Length
64.80mm
Max. Drill Dia.
21.15mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Flanged Shank
Yes
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flute Type
Slow Spiral
Number of Inserts
2
ISO Number
TCF0813R2SLR100C
Shank Type - Machining
Round with Flat and Side Lock
Central Insert Style
TCF
Coolant Fed
Coolant Through
Toolholder Style
TCF
Spiral Direction
Right Hand
ANSI Code
TCF0813R2SLR100C
Number of Coolant Holes
2
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 42.04mm, TCF0813R2SLR100C, TCF, Coolant Through
