  11. Indexable Insert Drill, 1", TCF

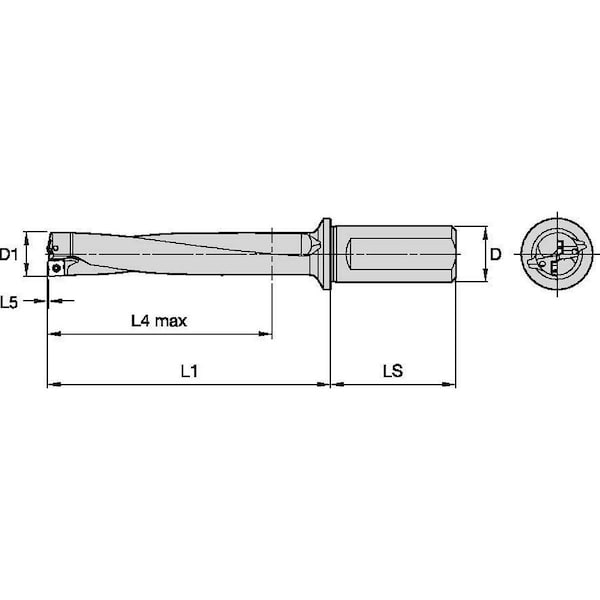

Widia Indexable Insert Drill, 1", TCF TCF0938R5SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0938R5SLR100C

  • Zoro # G3778343

product price: $695.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
5xD
Overall Length
8.1161 in
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0938R5SLR100C
Zoro #
G3778343
UPC #
4050841106573
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Overall Length
8.1161 in
Shank Dia.
1 in
Shank Length
2.2047 in
Min. Drill Dia.
15/16 in
Depth x Dia. Ratio
5xD
Flute Length
5.7540 in
Max. Drilling Depth
4.7220 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Number of Coolant Holes
2
Number of Inserts
2
Flute Type
Slow Spiral
Coolant Fed
Coolant Through
Toolholder Style
TCF
ISO Number
TCF0938R5SLR100C
ANSI Code
TCF0938R5SLR100C
Flanged Shank
Yes
Shank Type - Machining
Round with Flat and Side Lock
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Spiral Direction
Right Hand
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 4.7220 in, TCF0938R5SLR100C, TCF, Coolant Through
