  11. Indexable Insert Drill, 32.00mm, TCF, Flute Length: 146.00mm

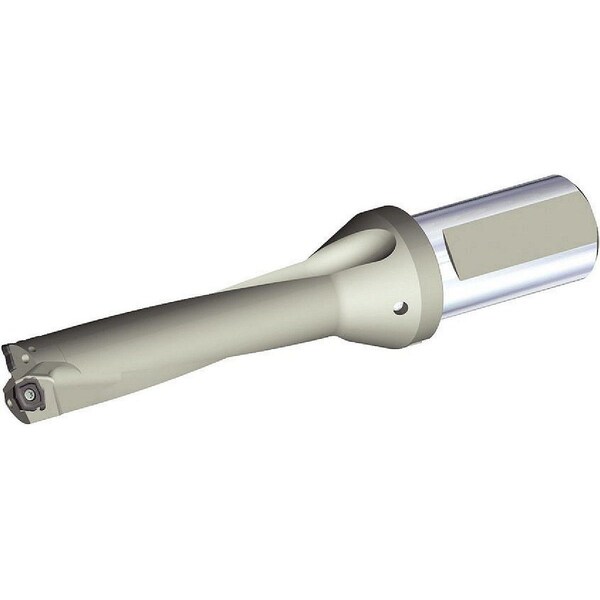

Widia Indexable Insert Drill, 32.00mm, TCF, Flute Length: 146.00mm TCF290R4SLR32MD - main

Indexable Insert Drill, 32.00mm, TCF, Flute Length: 146.00mm

  • Mfr # TCF290R4SLR32MD

  • Zoro # G3761193

product price: $565.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
4xD
Shank Dia.
32.00mm
Shank Length
60.00mm
Overall Length
211.02mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF290R4SLR32MD
Zoro #
G3761193
UPC #
4050839883189
Country of Origin
Bulgaria

Dimensions

Diameter
32.00mm
Shank Dia.
32.00mm
Shank Length
60.00mm
Overall Length
211.02mm
Min. Drill Dia.
29.00mm
Max. Drilling Depth
117.02mm
Flute Length
146.00mm
Depth x Dia. Ratio
4xD
Seat Size
D
Max. Drill Dia.
30.00mm

Details

Item
Indexable Insert Drill
Ratio
4xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Inserts
2
ISO Number
TCF290R4SLR32MD
Coolant Fed
Coolant Through
ANSI Code
TCF290R4SLR32MD
Central Insert Style
TCF
Flanged Shank
Yes
Number of Coolant Holes
2
Standards
ISO 9766
Shank Type - Machining
Round with Flat and Side Lock
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Spiral Direction
Right Hand
Flute Type
Slow Spiral
Toolholder Style
TCF
Measurement System
Metric

Description

Indexable Insert Drill, 4xD, Max. Drilling Depth 117.02mm, TCF290R4SLR32MD, TCF, Coolant Through
