  11. Indexable Insert Drill, 32.00mm, TCF
Widia Indexable Insert Drill, 32.00mm, TCF TCF265R2SLR32MD - main

Indexable Insert Drill, 32.00mm, TCF

  • Mfr # TCF265R2SLR32MD

  • Zoro # G3747920

product price: $494.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
2xD
Shank Dia.
32.00mm
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF265R2SLR32MD
Zoro #
G3747920
UPC #
4050839881659
Country of Origin
Bulgaria

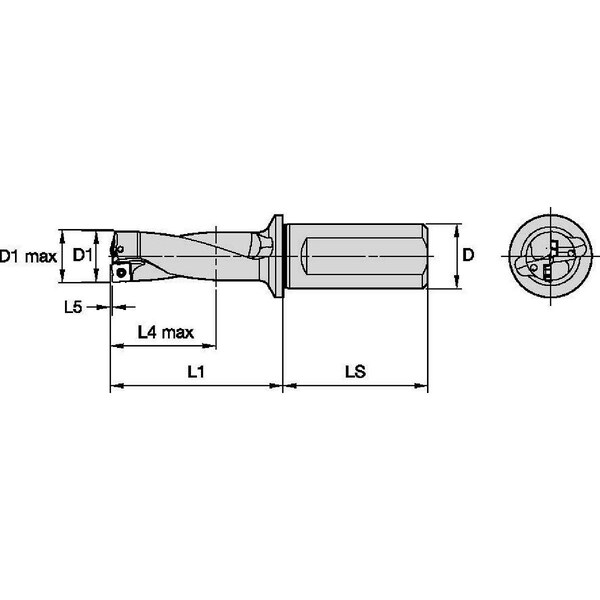

Dimensions

Diameter
32.00mm
Shank Dia.
32.00mm
Shank Length
60.00mm
Overall Length
145.95mm
Min. Drill Dia.
26.50mm
Depth x Dia. Ratio
2xD
Flute Length
80.50mm
Max. Drilling Depth
53.95mm
Max. Drill Dia.
27.50mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Flute Type
Slow Spiral
Coolant Fed
Coolant Through
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Central Insert Style
TCF
Toolholder Style
TCF
Number of Coolant Holes
2
Flanged Shank
Yes
ANSI Code
TCF265R2SLR32MD
Shank Type - Machining
Round with Flat and Side Lock
Standards
ISO 9766
ISO Number
TCF265R2SLR32MD
Number of Inserts
2
Spiral Direction
Right Hand
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 53.95mm, TCF265R2SLR32MD, TCF, Coolant Through
