  11. Indexable Insert Drill, 32.00mm, TCF

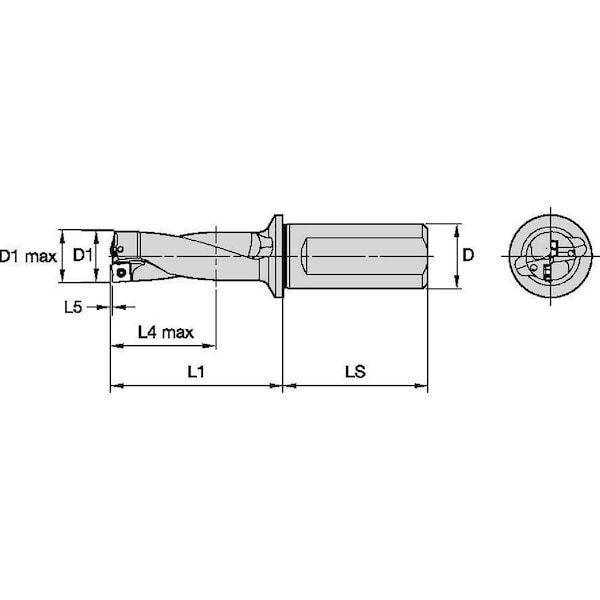

Widia Indexable Insert Drill, 32.00mm, TCF TCF280R2SLR32MD - main

Indexable Insert Drill, 32.00mm, TCF

  • Mfr # TCF280R2SLR32MD

  • Zoro # G3760231

product price: $524.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
2xD
Cutting Direction
Right Hand
Shank Length
60.00mm
Overall Length
149.99mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF280R2SLR32MD
Zoro #
G3760231
UPC #
4050839881833
Country of Origin
Bulgaria

Dimensions

Diameter
32.00mm
Shank Length
60.00mm
Overall Length
149.99mm
Shank Dia.
32.00mm
Depth x Dia. Ratio
2xD
Min. Drill Dia.
28.00mm
Max. Drilling Depth
56.99mm
Flute Length
85.00mm
Max. Drill Dia.
29.00mm
Seat Size
D

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Spiral Direction
Right Hand
Coolant Fed
Coolant Through
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
Standards
ISO 9766
Central Insert Style
TCF
ANSI Code
TCF280R2SLR32MD
Flute Type
Slow Spiral
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Number of Inserts
2
Flanged Shank
Yes
ISO Number
TCF280R2SLR32MD
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 56.99mm, TCF280R2SLR32MD, TCF, Coolant Through
