Widia Indexable Insert Drill, 32.00mm, TCF TCF300R3SLR32ME - main

Indexable Insert Drill, 32.00mm, TCF

  • Mfr # TCF300R3SLR32ME

  • Zoro # G3760889

product price: $586.99
/ea
Free Shipping & Returns

Key Features

Diameter
32.00mm
Ratio
3xD
Shank Dia.
32.00mm
Shank Length
60.00mm
Overall Length
183.09mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF300R3SLR32ME
Zoro #
G3760889
UPC #
4050839890316
Country of Origin
Bulgaria

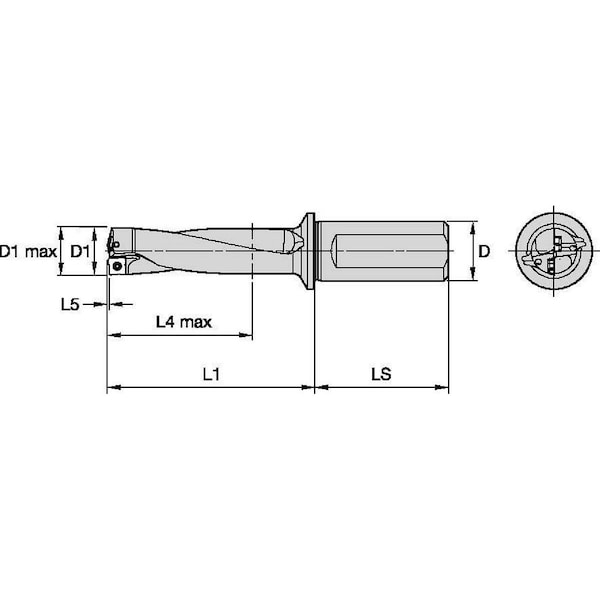

Dimensions

Diameter
32.00mm
Shank Dia.
32.00mm
Shank Length
60.00mm
Overall Length
183.09mm
Depth x Dia. Ratio
3xD
Max. Drilling Depth
91.09mm
Flute Length
118.10mm
Min. Drill Dia.
30.00mm
Seat Size
E
Max. Drill Dia.
31.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Central Insert Style
TCF
Coolant Fed
Coolant Through
ISO Number
TCF300R3SLR32ME
Number of Inserts
2
Standards
ISO 9766
Flute Type
Slow Spiral
Flanged Shank
Yes
ANSI Code
TCF300R3SLR32ME
Spiral Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
Toolholder Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 91.09mm, TCF300R3SLR32ME, TCF, Coolant Through
