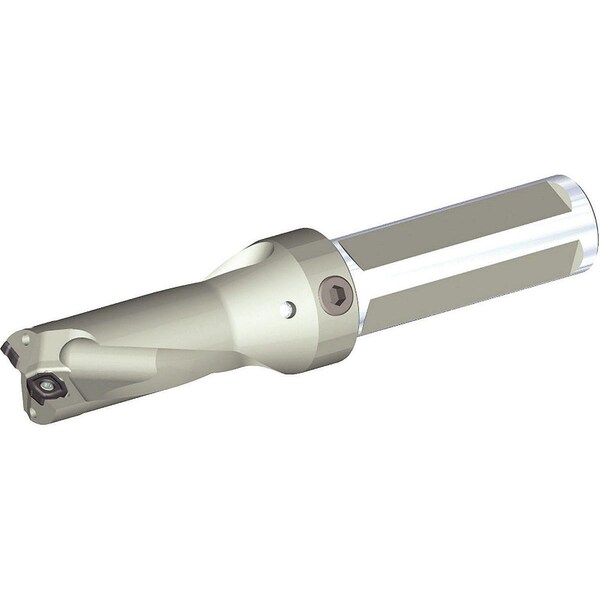

Widia Indexable Insert Drill, 3/4", TCF TCF0473R2SLR075A - main

Indexable Insert Drill, 3/4", TCF

  • Mfr # TCF0473R2SLR075A

  • Zoro # G3761659

product price: $420.99
/ea
Free Shipping & Returns

Key Features

Diameter
3/4"
Ratio
2xD
Cutting Direction
Right Hand
Shank Length
50.00mm
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0473R2SLR075A
Zoro #
G3761659
UPC #
4050839885787
Country of Origin
Germany

Dimensions

Diameter
3/4"
Shank Length
50.00mm
Shank Dia.
3/4 in
Overall Length
92.88mm
Min. Drill Dia.
12.01mm
Flute Length
38.90mm
Max. Drilling Depth
24.46mm
Depth x Dia. Ratio
2xD
Max. Drill Dia.
12.51mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Spiral Direction
Right Hand
Flute Type
Slow Spiral
Number of Inserts
2
ANSI Code
TCF0473R2SLR075A
ISO Number
TCF0473R2SLR075A
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Number of Coolant Holes
2
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Coolant Fed
Coolant Through
Flanged Shank
Yes
Central Insert Style
TCF
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 24.46mm, TCF0473R2SLR075A, TCF, Coolant Through
