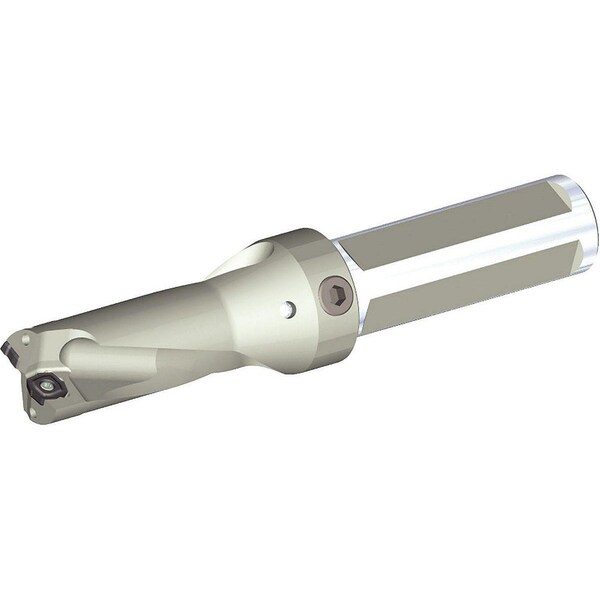

Widia Indexable Insert Drill, 3/4", TCF TCF0594R2SLR075B - main

Indexable Insert Drill, 3/4", TCF

  • Mfr # TCF0594R2SLR075B

  • Zoro # G3779463

product price: $448.99
/ea
Free Shipping & Returns

Key Features

Diameter
3/4"
Ratio
2xD
Overall Length
101.32mm
Cutting Direction
Right Hand
Shank Dia.
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0594R2SLR075B
Zoro #
G3779463
UPC #
4050841101363
Country of Origin
Germany

Dimensions

Diameter
3/4"
Overall Length
101.32mm
Shank Dia.
3/4 in
Shank Length
50.00mm
Flute Length
47.30mm
Max. Drilling Depth
30.72mm
Min. Drill Dia.
15.09mm
Depth x Dia. Ratio
2xD
Max. Drill Dia.
15.59mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Coolant Fed
Coolant Through
Flute Type
Slow Spiral
Flanged Shank
Yes
ANSI Code
TCF0594R2SLR075B
Number of Inserts
2
ISO Number
TCF0594R2SLR075B
Spiral Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Toolholder Style
TCF
Central Insert Style
TCF
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 30.72mm, TCF0594R2SLR075B, TCF, Coolant Through
