Widia Indexable Insert Drill, 3/4", TCF TCF0703R3SLR075B - main

Indexable Insert Drill, 3/4", TCF

  • Mfr # TCF0703R3SLR075B

  • Zoro # G3778492

product price: $535.99
/ea
Free Shipping & Returns

Key Features

Diameter
3/4"
Ratio
3xD
Overall Length
127.85mm
Shank Dia.
3/4 in
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0703R3SLR075B
Zoro #
G3778492
UPC #
4050841102445
Country of Origin
Germany

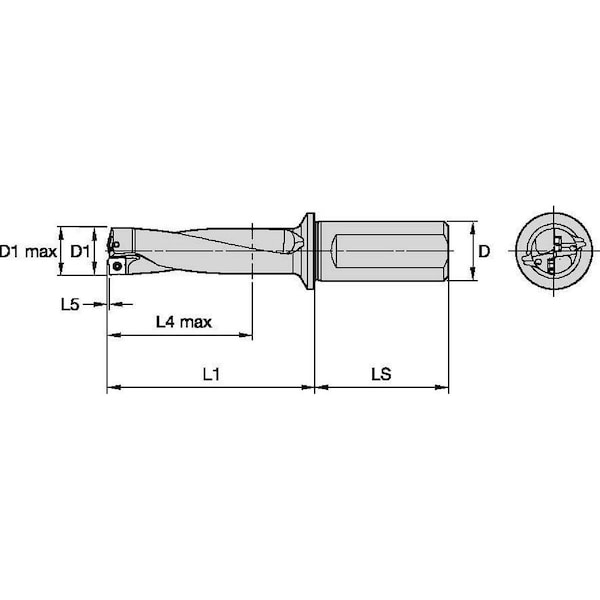

Dimensions

Diameter
3/4"
Overall Length
127.85mm
Shank Dia.
3/4 in
Shank Length
50.00mm
Max. Drilling Depth
54.20mm
Depth x Dia. Ratio
3xD
Min. Drill Dia.
17.86mm
Flute Length
73.80mm
Max. Drill Dia.
18.35mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Central Insert Style
TCF
Toolholder Style
TCF
Number of Coolant Holes
2
Shank Type - Machining
Round with Flat and Side Lock
Coolant Fed
Coolant Through
Number of Inserts
2
Spiral Direction
Right Hand
ANSI Code
TCF0703R3SLR075B
ISO Number
TCF0703R3SLR075B
Flute Type
Slow Spiral
Flanged Shank
Yes
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 54.20mm, TCF0703R3SLR075B, TCF, Coolant Through
