Widia Indexable Insert Drill, 3/4", TCF TCF0703R5SLR075B - main

Indexable Insert Drill, 3/4", TCF

  • Mfr # TCF0703R5SLR075B

  • Zoro # G3776989

product price: $660.99
/ea
Free Shipping & Returns

Key Features

Diameter
3/4"
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Shank Dia.
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0703R5SLR075B
Zoro #
G3776989
UPC #
4050841103886
Country of Origin
Germany

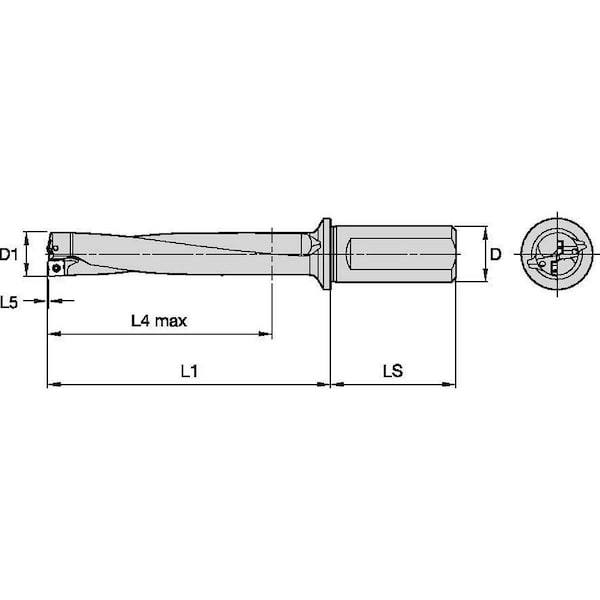

Dimensions

Diameter
3/4"
Shank Dia.
3/4 in
Overall Length
6.4395 in
Shank Length
1.9685 in
Depth x Dia. Ratio
5xD
Min. Drill Dia.
45/64 in
Max. Drilling Depth
3.5400 in
Flute Length
4.3130 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Flute Type
Slow Spiral
Central Insert Style
TCF
ISO Number
TCF0703R5SLR075B
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Toolholder Style
TCF
ANSI Code
TCF0703R5SLR075B
Number of Coolant Holes
2
Shank Type - Machining
Round with Flat and Side Lock
Flanged Shank
Yes
Number of Inserts
2
Coolant Fed
Coolant Through
Spiral Direction
Right Hand
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 3.5400 in, TCF0703R5SLR075B, TCF, Coolant Through
