  11. Indexable Insert Drill, 40.00mm, TCF
Widia Indexable Insert Drill, 40.00mm, TCF TCF500R3SLR40MG - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF500R3SLR40MG

  • Zoro # G3748794

product price: $752.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Overall Length
267.79mm
Cutting Direction
Right Hand
Shank Dia.
40.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TCF500R3SLR40MG
Zoro #
G3748794
UPC #
4050841115841
Country of Origin
Bulgaria

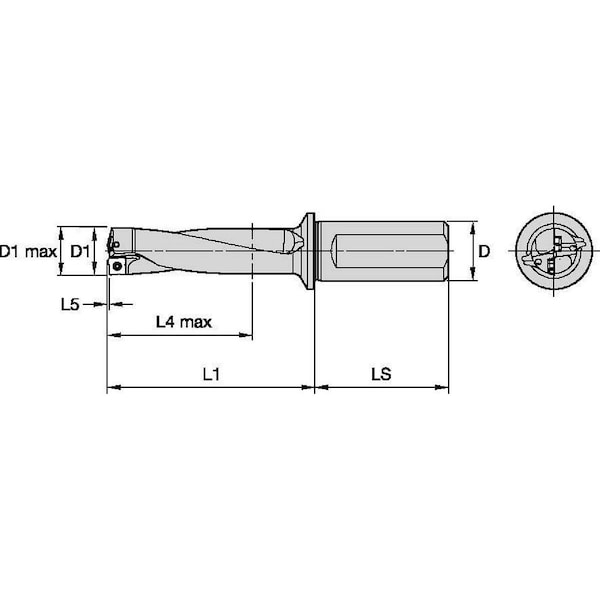

Dimensions

Diameter
40.00mm
Overall Length
267.79mm
Shank Dia.
40.00mm
Shank Length
70.00mm
Max. Drilling Depth
151.79mm
Depth x Dia. Ratio
3xD
Flute Length
191.80mm
Min. Drill Dia.
50.00mm
Seat Size
G
Max. Drill Dia.
51.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Inserts
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Toolholder Style
TCF
Spiral Direction
Right Hand
Central Insert Style
TCF
Number of Coolant Holes
2
Coolant Fed
Coolant Through
ANSI Code
TCF500R3SLR40MG
Standards
ISO 9766
Flanged Shank
Yes
Flute Type
Slow Spiral
Shank Type - Machining
Round with Flat and Side Lock
ISO Number
TCF500R3SLR40MG
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 151.79mm, TCF500R3SLR40MG, TCF, Coolant Through
