  11. Indexable Insert Drill, 40.00mm, TCF
Widia Indexable Insert Drill, 40.00mm, TCF TCF520R2SLR40MG - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF520R2SLR40MG

  • Zoro # G3751314

product price: $651.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
2xD
Cutting Direction
Right Hand
Overall Length
223.84mm
Shank Length
70.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF520R2SLR40MG
Zoro #
G3751314
UPC #
4050841115032
Country of Origin
Bulgaria

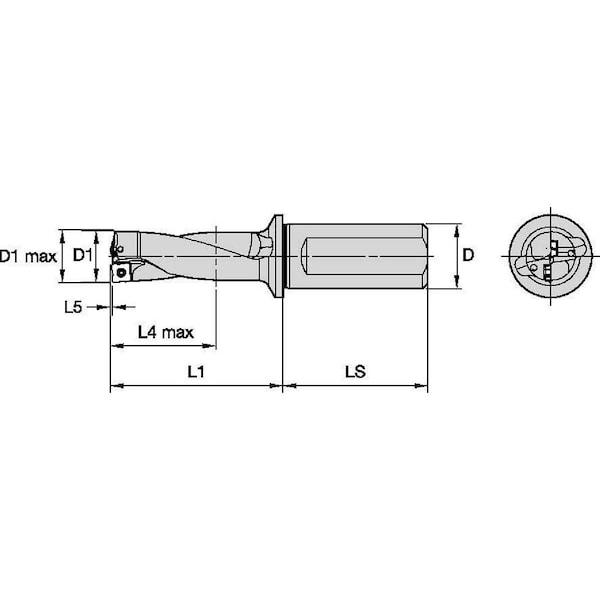

Dimensions

Diameter
40.00mm
Overall Length
223.84mm
Shank Length
70.00mm
Shank Dia.
40.00mm
Flute Length
147.40mm
Min. Drill Dia.
52.00mm
Max. Drilling Depth
105.84mm
Depth x Dia. Ratio
2xD
Max. Drill Dia.
53.00mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Standards
ISO 9766
Number of Inserts
2
Flute Type
Slow Spiral
ANSI Code
TCF520R2SLR40MG
Flanged Shank
Yes
Number of Coolant Holes
2
Shank Type - Machining
Round with Flat and Side Lock
Spiral Direction
Right Hand
Toolholder Style
TCF
Central Insert Style
TCF
ISO Number
TCF520R2SLR40MG
Coolant Fed
Coolant Through
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 105.84mm, TCF520R2SLR40MG, TCF, Coolant Through
