  11. Indexable Insert Drill, 40.00mm, TCF
Widia Indexable Insert Drill, 40.00mm, TCF TCF680R3SLR40MH - main

Indexable Insert Drill, 40.00mm, TCF

  • Mfr # TCF680R3SLR40MH

  • Zoro # G3778361

product price: $846.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
3xD
Shank Dia.
40.00mm
Overall Length
330.36mm
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF680R3SLR40MH
Zoro #
G3778361
UPC #
4050839904532
Country of Origin
Bulgaria

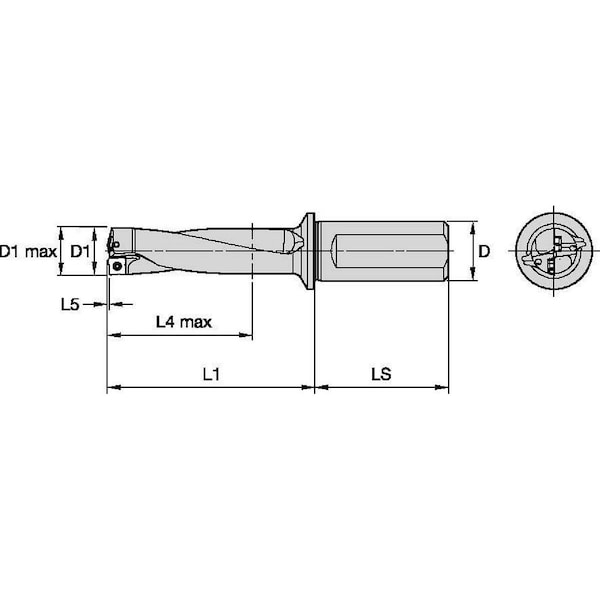

Dimensions

Diameter
40.00mm
Shank Dia.
40.00mm
Overall Length
330.36mm
Shank Length
70.00mm
Depth x Dia. Ratio
3xD
Flute Length
254.00mm
Min. Drill Dia.
68.00mm
Max. Drilling Depth
206.36mm
Max. Drill Dia.
69.00mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Inserts
2
Spiral Direction
Right Hand
ANSI Code
TCF680R3SLR40MH
ISO Number
TCF680R3SLR40MH
Standards
ISO 9766
Toolholder Style
TCF
Number of Coolant Holes
2
Flanged Shank
Yes
Coolant Fed
Coolant Through
Central Insert Style
TCF
Flute Type
Slow Spiral
Shank Type - Machining
Round with Flat and Side Lock
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 206.36mm, TCF680R3SLR40MH, TCF, Coolant Through
