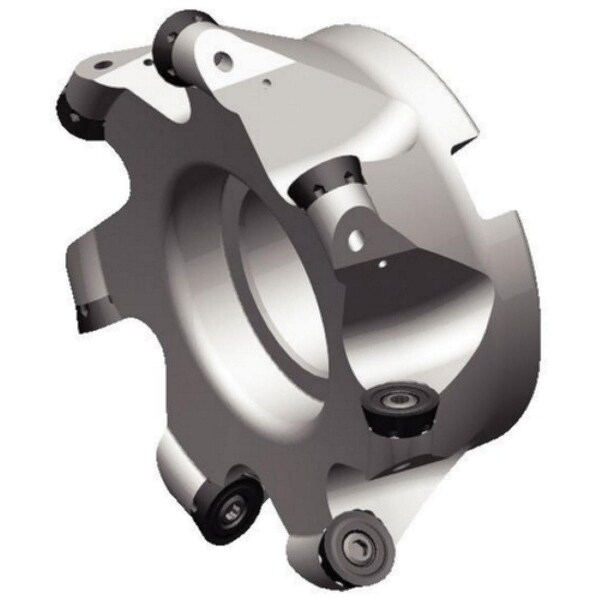

Indexable Profiling End Mill, M100 Series, High Speed Steel, 8.00mm Depth of Cut
Mfr # 12391021600
Zoro # G3801050
product price:Â $1,009.99
/ea
Free Shipping & Returns
Key Features
Series
M100
Overall Length
50.00mm
Depth of Cut
8.00mm
Material - Machining
High Speed Steel
Insert Size
1605
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
12391021600
Zoro #
G3801050
UPC #
4021169171789
Country of Origin
Czechia
Dimensions
Overall Length
50.00mm
Depth of Cut
8.00mm
Insert Size
1605
Max. Cutting Dia.
100.00mm
Arbor Dia.
32.00mm
Hub Outside Dia.
78.00mm
Details
Item
Indexable Profiling End Mill
Series
M100
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Round
Insert Holding Type
Screw
Compatible Hardware
Insert Screw M4.5x0.75 x 11 T20
Insert Style
RD
Features
Anti-Rotation Feature for Top Security
Cutting Application
3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
ANSI Code
12391021600
Coolant Fed
Non-Coolant Through
ISO Number
12391021600
Number of Inserts
6
Max. Speed
9,000 RPM
Description
Indexable Profiling End Mill, Max. Cutting Dia. 100.00mm, Depth of Cut 8.00mm, Overall Length 50.00mm, ANSI Code 12391021600, Compatible Hardware Insert Screw M4.5x0.75 x 11 T20, Coolant Fed Non-Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
