Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
Mfr # M1200D063Z04HN07
Zoro # G3785230
product price:Â $737.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
40.00mm
Depth of Cut
3.50mm
Material - Machining
High Speed Steel
Insert Size
0704
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200D063Z04HN07
Zoro #
G3785230
UPC #
4021169655180
Country of Origin
Japan

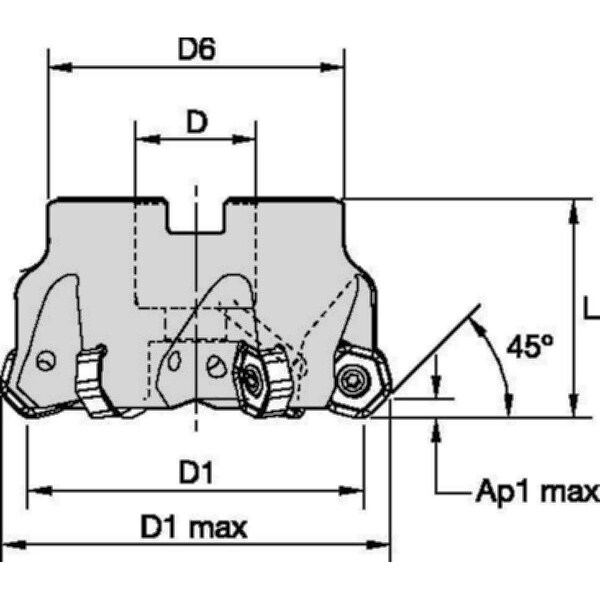

Dimensions
Overall Length
40.00mm
Depth of Cut
3.50mm
Insert Size
0704
Max. Cutting Dia.
71.71mm
Arbor Dia.
22.00mm
Hub Outside Dia.
50.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-6.5 Degrees Radial, -7 Degrees Axial
Max. Speed
10,100 RPM
Coolant Fed
Coolant Through
Compatible Hardware
Insert Screw M4x0.7 x 10 T15, SHCS with Coolant Groove, Torx Driver
ISO Number
M1200D063Z04HN07
Insert Style
HNGJ ANENLD
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Number of Inserts
4
Features
First Choice for Low Depth of Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges
Insert Holding Type
Screw
ANSI Code
M1200D063Z04HN07
Description
Indexable Profiling End Mill, Max. Cutting Dia. 71.71mm, Depth of Cut 3.50mm, Overall Length 40.00mm, ANSI Code M1200D063Z04HN07, Compatible Hardware Insert Screw M4x0.7 x 10 T15, SHCS with Coolant Groove, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
