Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
Mfr # M1200D063Z08HN07
Zoro # G3802143
product price:Â $1,102.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
40.00mm
Depth of Cut
3.50mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M1200D063Z08HN07
Zoro #
G3802143
UPC #
4021169655081
Country of Origin
Czechia

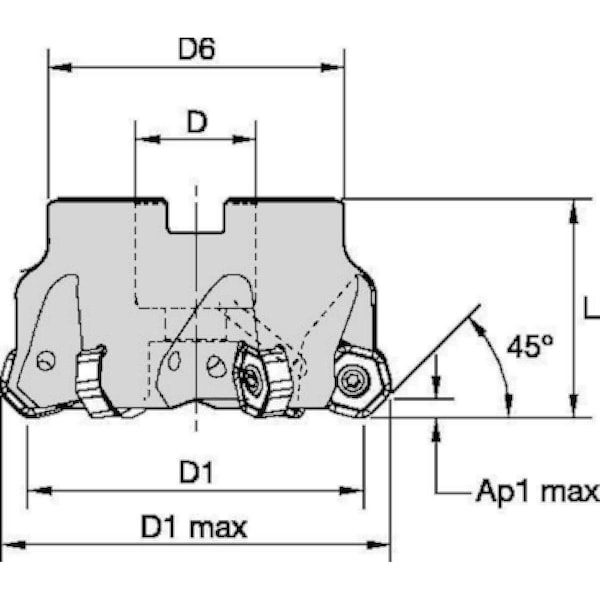

Dimensions
Overall Length
40.00mm
Depth of Cut
3.50mm
Insert Size
0704
Max. Cutting Dia.
71.71mm
Arbor Dia.
22.00mm
Hub Outside Dia.
50.00mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-6.5 Degrees Radial, -7 Degrees Axial
Insert Holding Type
Screw
Max. Speed
10,100 RPM
Features
First Choice for Low Depth of Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges
Insert Style
HNGJ ANENLD
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
ISO Number
M1200D063Z08HN07
Compatible Hardware
Insert Screw M4x0.7 x 10 T15, SHCS with Coolant Groove, Torx Driver
ANSI Code
M1200D063Z08HN07
Number of Inserts
8
Coolant Fed
Coolant Through
Description
Indexable Profiling End Mill, Max. Cutting Dia. 71.71mm, Depth of Cut 3.50mm, Overall Length 40.00mm, ANSI Code M1200D063Z08HN07, Compatible Hardware Insert Screw M4x0.7 x 10 T15, SHCS with Coolant Groove, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
