Indexable Profiling End Mill, M1200 Series, High Speed Steel, 3.50mm Depth of Cut
Mfr # M1200D250Z08S075HN07
Zoro # G3802800
product price:Â $1,053.99
/ea
Free Shipping & Returns
Key Features
Series
M1200
Overall Length
40.00mm
Depth of Cut
3.50mm
Material - Machining
High Speed Steel
Insert Size
0704
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200D250Z08S075HN07
Zoro #
G3802800
UPC #
4021169667374
Country of Origin
India

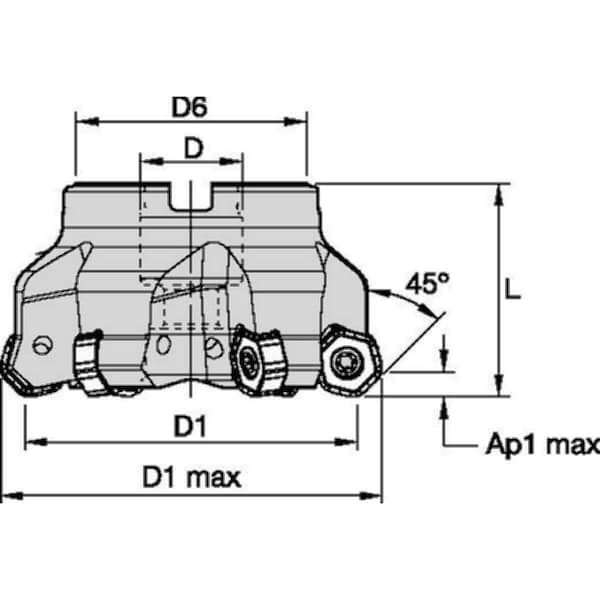

Dimensions
Overall Length
40.00mm
Depth of Cut
3.50mm
Insert Size
0704
Max. Cutting Dia.
72.20mm
Arbor Dia.
3/4"
Hub Outside Dia.
44.45mm
Details
Item
Indexable Profiling End Mill
Series
M1200
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-6.5 Degrees Radial, -7 Degrees Axial
Insert Holding Type
Screw
Features
First Choice for Low Depth of Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
Max. Speed
10,000 RPM
Coolant Fed
Coolant Through
ANSI Code
M1200D250Z08S075HN07
ISO Number
M1200D250Z08S075HN07
Insert Style
HNGJ ANENLD
Compatible Hardware
3/8"-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver
Number of Inserts
8
Description
Indexable Profiling End Mill, Max. Cutting Dia. 72.20mm, Depth of Cut 3.50mm, Overall Length 40.00mm, ANSI Code M1200D250Z08S075HN07, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Eased Chamfer
