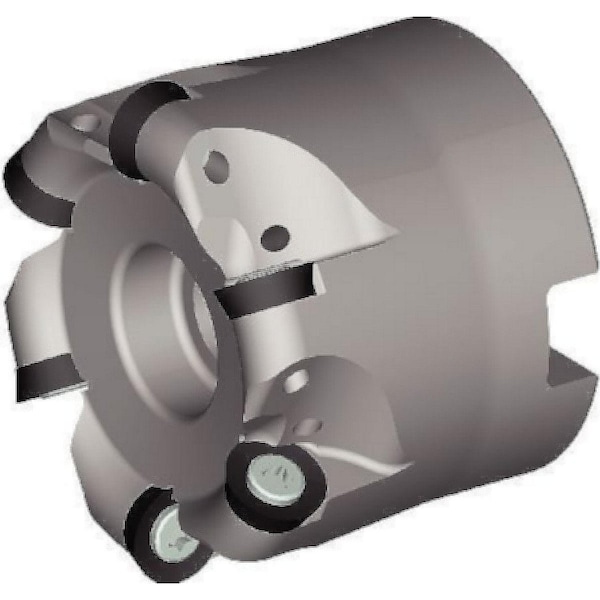

Indexable Profiling End Mill, M170 Series, High Speed Steel, 5.00mm Depth of Cut
Mfr # M170D050Z06RD10
Zoro # G3800840
product price: $656.99
/ea
Free Shipping & Returns
Key Features
Series
M170
Overall Length
40.00mm
Depth of Cut
5.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M170D050Z06RD10
Zoro #
G3800840
UPC #
4021169678196
Country of Origin
Spain
Dimensions
Overall Length
40.00mm
Depth of Cut
5.00mm
Insert Size
1003
Max. Cutting Dia.
50.00mm
Arbor Dia.
22.00mm
Hub Outside Dia.
44.00mm
Details
Item
Indexable Profiling End Mill
Series
M170
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
Round
Rake
-5 Degrees Radial
Cutting Application
3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Compatible Hardware
Insert Screw M3.5x0.6 x 7.7 T15, Screw M10x1.5 x 25 mm LG Socket, SHCS with Coolant Groove, Torx Driver
Features
Designed for Maximum Performance, Ideally Suited for Die and Mold Manufacturing, Premium Nickel-Coated Bodies
Number of Inserts
6
ISO Number
M170D050Z06RD10
Coolant Fed
Coolant Through
Insert Style
RD.X
Insert Holding Type
Screw
ANSI Code
M170D050Z06RD10
Max. Speed
7,950 RPM
Description
Indexable Profiling End Mill, Max. Cutting Dia. 50.00mm, Depth of Cut 5.00mm, Overall Length 40.00mm, ANSI Code M170D050Z06RD10, Compatible Hardware Insert Screw M3.5x0.6 x 7.7 T15, Screw M10x1.5 x 25 mm LG Socket, SHCS with Coolant Groove, Torx Driver, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
