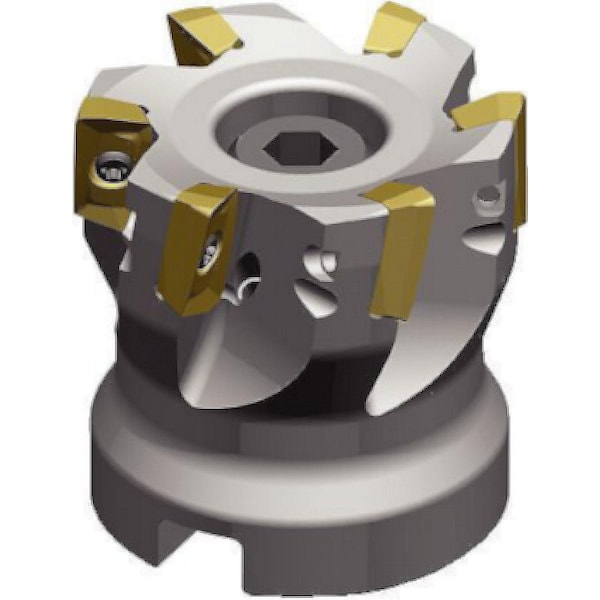

Indexable Profiling End Mill, VSM11 Series, High Speed Steel, 11.38mm Depth of Cut
Mfr # VSM11D040Z06S016XD11
Zoro # G3784241
product price:Â $571.99
/ea
Free Shipping & Returns
Key Features
Series
VSM11
Overall Length
40.00mm
Depth of Cut
11.38mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM11D040Z06S016XD11
Zoro #
G3784241
UPC #
4050839636532
Country of Origin
Bulgaria
Dimensions
Overall Length
40.00mm
Depth of Cut
11.38mm
Insert Size
110408
Arbor Dia.
16.00mm
Hub Outside Dia.
37.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM11
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
75 Degrees Parallelogram
Rake
-5.717 Degrees Radial, 11 Degrees Axial
Cutting Application
Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
Number of Inserts
6
Features
Effective Internal Coolant Feature, Increased Ramping Capability, Precisely Reaching the Cutting Edge, Superior Wall and Surface Finish Capabilities, True 90 Degrees Capability
ISO Number
VSM11D040Z06S016XD11
Insert Holding Type
Screw
Insert Style
XD.T PD R
Compatible Hardware
Cylindrical Screw DIN912 M8x25, Insert Screw M2.5x0.45 x 5.9 T8, SHCS with Coolant Groove, Torx Wrench TX8
Coolant Fed
Coolant Through
ANSI Code
VSM11D040Z06S016XD11
Side Cutting Edge Angle
90 Degrees
Max. Speed
22,600 RPM
Description
Indexable Profiling End Mill, Depth of Cut 11.38mm, Overall Length 40.00mm, ANSI Code VSM11D040Z06S016XD11, Compatible Hardware Cylindrical Screw DIN912 M8x25, Insert Screw M2.5x0.45 x 5.9 T8, SHCS with Coolant Groove, Torx Wrench TX8, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
