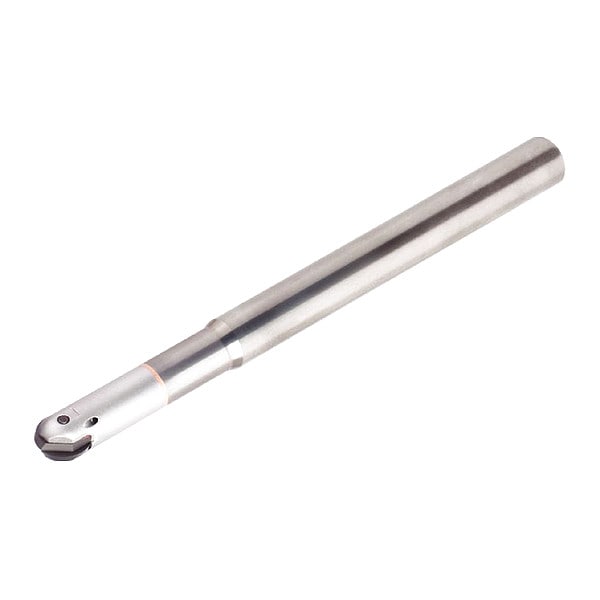

Indexable Profiling End Mill, M270 Series, Carbide
Mfr # M270BD012A12L145C
Zoro # G3803561
product price: $815.99
/ea
Free Shipping & Returns
Key Features
Series
M270
Overall Length
145.00mm
Material - Machining
Carbide
Cutting Direction
Right Hand
Insert Size
M270B.12
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M270BD012A12L145C
Zoro #
G3803561
UPC #
4021169151088
Country of Origin
Germany
Dimensions
Overall Length
145.00mm
Insert Size
M270B.12
Shank Dia.
12.00mm
Head Dia.
12.00mm
Head Projection Length
50.00mm
Max. Cutting Dia.
12.00mm
Shank Length
98.00mm
Details
Item
Indexable Profiling End Mill
Series
M270
Material - Machining
Carbide
Cutting Direction
Right Hand
Insert Shape
Ball Nose
Features
Rough, Semi-Finishing and Finishing with One System, Through Tool Coolant
Insert Holding Type
Screw
Coolant Fed
Coolant Through
Compatible Hardware
Insert Screw M3x0.5 x 9.9 T9, Torx Wrench
Insert Style
M270B
Max. Speed
55,000 RPM
Cutting Application
3D Profiling, Ball Nose, Pocketing, Side/Shoulder Milling: Ramping: Blank, Slotting: Ball Nose
ANSI Code
M270BD012A12L145C
Shank Type - Machining
Straight
Number of Inserts
1
ISO Number
M270BD012A12L145C
Description
Indexable Profiling End Mill, Max. Cutting Dia. 12.00mm, Shank Dia. 12.00mm, Overall Length 145.00mm, ANSI Code M270BD012A12L145C, Compatible Hardware Insert Screw M3x0.5 x 9.9 T9, Torx Wrench, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Ball Nose, Pocketing, Side/Shoulder Milling: Ramping: Blank, Slotting: Ball Nose
